THis will settle all the problems with having to either remove the entire dash or the airbag out of your 98-04 s-10 or blazer. This is how to install the Kaik grab bar using the dash speaker location as your access area. It took me about 3 hours to figure this all out and go threw a lot of frustration, and it helps to have a second person

KAIK grab bar ($76.99 + shipping at the time I bought it)--> http://www.kaikproducts.com

Before:


Stock vs. Kaik Grab bar:


First remove the left bolt. To do this remove the dash bezel and your headunit and you can use a small socket wrench with a 10mm socket (im pretty sure it was 10mm). you can feel around and you will feel the bolt up there. Remove this bolt entirely, if you drop it thats no big deal because KAIK gives you new ones that are different sizes anyways, but if you drop it you have a loose nut in your dash and thats never good.

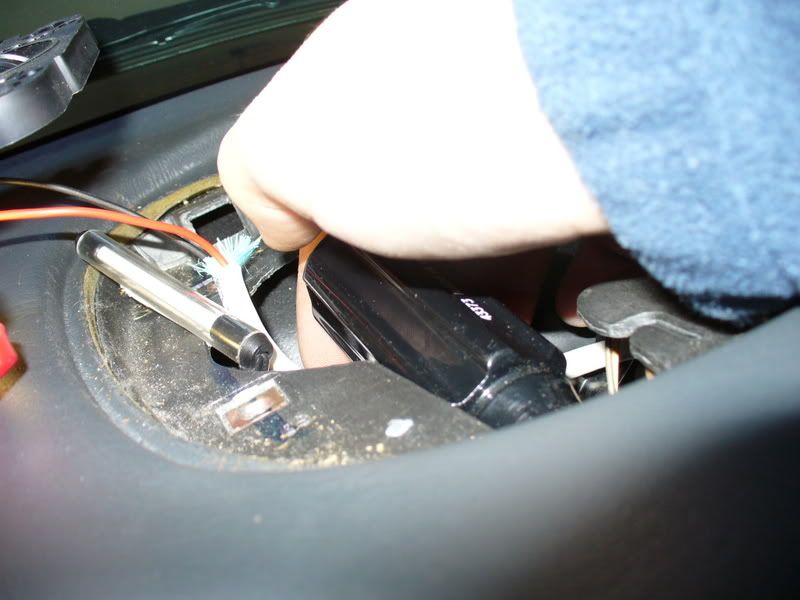

Next you need to get the right side bolt out. To accomplish this remove the dash speaker grill and the speaker. This is the tricky part. You now need either a long swivel extention for your socket wrench or I had a 8" or so snake thing that allows you to get in tight places and bend it. You will need a small inspection mirror to help you see the bolt that needs to be removed. Place the mirror in the speaker hole and look for the bolt. There will be one bolt thats easy to find.......and i thought this was the one at first and once i got it out the grab bar was still bolted in, i concluded that that bolt must have been to hold the airbag into the dash or something......but i just put that bolt back on and tightened it up. the picture below labels this incorrect/misleading bolt as "Wrong". The bolt you want is a little more the right and up higher, but i was unable to get a decent picture of it with the camera, and it is labeled "about here"

Use your 10mm socket with a swivel extension or some type of snake thing and get the bolt out. The Grab bar will now come out.


The new grab bar comes with new nuts(11mm now, versus the stock 10 mm) and washers , the threads on the grab bar are different sizes so you must use the new hardware. The nuts and washers are now seperate, as where the stock one was one of those types that are a washer and nut combined into one thing. This makes things a little more tricky. I decided to use superglue to glue the nut and wahser together. Because you need to get the nut and washer behind the dash and screw it into the theads of the new grab bar. its very tricky.....I had the nut/washer thing fall off the end of my snake extension thing at least 10 times......each time it fell i was easily able to get it back by reaching in the speaker hole or it feel in the glove box area(easier to find dropped nuts if you glove box door is completly removed). But it takes some serious patience but after a while you will get it. It helps to have another person hold the grab bar in place while the other is trying to tighten the nut. Just tighen up the nut once you get it on. Then I did the left side nut: just insert the grab bar thread into the left side hole, put the washer on the back side followed by the nut, and tigthen it up. Now you have a newly installed grab bar! You can see the snake thing sitting on the dash that I used.


Any questions/comments feel free to ask


·
In The Dog House
Joined
·
418 Posts
Re: [How to] Install KAIK Grab Bar *make a sticky?*

Great how to. I will be ordering one soon. Do you think it might have been easier to do the left side first since it seems like it's not as hard to get to? As in you might not need a second person to hold the bar. Thanks for the info., will definetly come in handy when installing mine.


·
Twizted Intentions TN
Joined
·
1,431 Posts
Re: [How to] Install KAIK Grab Bar *make a sticky?*

great how-to but it still looks extremely difficult, seems like it would be very frustrating


·
Baby > Home > S10
Joined
·
9,517 Posts
Discussion Starter #7
Re: [How to] Install KAIK Grab Bar *make a sticky?*

it certainly isnt easy, its hard to find the bolt with the mirror and when putting in the new bolt on the back side, it kept falling off beford i got it to the threads on the new grab bar. i was definitily throwing out some 4 letter words even while my mom was holding the bar for me, but i got the job done one way or another. I was very relieved when it was all said and done. but this way seems easier then taking the entire dash out or removing the airbag


·
In The Dog House
Joined
·
418 Posts
Re: [How to] Install KAIK Grab Bar *make a sticky?*

OK I just finished installing mine. I went ahead and removed the passenger airbag. It made it much easier to get to the handle nuts. There are only 2 nuts (beside the nuts for the handle and 2 bolts (once you drop the glove box) that need to be removed in order to remove the bag.

Once the bag was out of the way, I could actually feel both nuts for the handle. I did not have to remove my radio because I reached the left nut from the airbag opening. Plenty of room to ratchet. The I could reach the right one from the airbag opening also. I did have to remove the speaker to get to the airbag nut, but saw how difficult it was to reach the handle nut.

I'm glad I removed the bag. It takes less than five minutes to do and I'm sure it saved me a lot of aggravation. Once I get my new steering wheel installed, I'll post up some pics.


·
LS ONE
Joined
·
2,141 Posts
Re: [How to] Install KAIK Grab Bar *make a sticky?*

OK I just finished installing mine. I went ahead and removed the passenger airbag. It made it much easier to get to the handle nuts. There are only 2 nuts (beside the nuts for the handle and 2 bolts (once you drop the glove box) that need to be removed in order to remove the bag.

Once the bag was out of the way, I could actually feel both nuts for the handle. I did not have to remove my radio because I reached the left nut from the airbag opening. Plenty of room to ratchet. The I could reach the right one from the airbag opening also. I did have to remove the speaker to get to the airbag nut, but saw how difficult it was to reach the handle nut.

I'm glad I removed the bag. It takes less than five minutes to do and I'm sure it saved me a lot of aggravation. Once I get my new steering wheel installed, I'll post up some pics.
Yeah, removing the airbag is the quickest, easiest way to do it, but a lot of peaple are afraid of the airbag box because of the explosive device in it, and rightly so, but it's pretty stable unless you put electricity to it


·
Baby > Home > S10
Joined
·
9,517 Posts
Discussion Starter #11 (Edited)
Re: [How to] Install KAIK Grab Bar *make a sticky?*

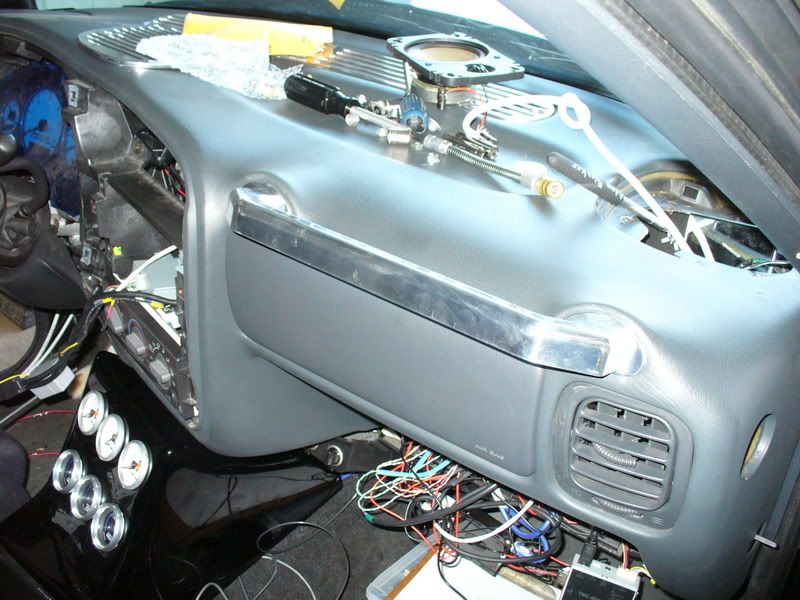

its personal opinion just like everything else. there are plenty of people on this forum that I know have this billet grab bar in and love it, i love it personally. i think it looks amazing. and i guess the pics i posted are the most complimenting pics, but here are some ones that make it look nicer:



·
~~~~
Joined
·
23,957 Posts
Re: [How to] Install KAIK Grab Bar *make a sticky?*

Very nicely done man :tup:


·
Super Moderator
Joined
·
16,419 Posts
Re: [How to] Install KAIK Grab Bar *make a sticky?*

Got mine installed. I was doing 2 things at once. Removing the airbag to paint the front piece and installing the bar. I did the following in this order:

1.) removed 2 bolts underneath that hold the bottom of the airbag assembly in.

2.) moved up top. got the drivers side airbag loose. Next, I removed the passenger side speaker grill/speaker, I used a 1/4 inch ratchet, 6 inch extension and a deepwell 10mm. I removed the nut holding the passenger side grab bar first after fishing around. Then I took my mini LED flashight and laid it up inside where the speaker would be so it'd point back. Through the hole where the grab bar bolts to, I have good eyeball of where the same extension/ratchet setup is going. snaked around for a minute, got a hold of it and removed it. airbag came right out.
4.) went in through the hole where the bag was, got the drivers side nut for the grab bar, pulled grab bar.
5.) install new grab bar, took airbag assembly to basement to begin prepping for paint.

One thing I did to make myself feel a lil better about messing with the passenger airbag, was I disconnected the battery and the yellow connection for the passenger airbag that you can access via the glovebox. Let everything sit for awhile, came back and went to work. I'll post pics once I get everything back together.


·
~~~~
Joined
·
23,957 Posts
Re: [How to] Install KAIK Grab Bar *make a sticky?*



What make model are the gauges in the lower part? they look like air fuel.


·
Baby > Home > S10
Joined
·
9,517 Posts
Discussion Starter #15
Re: [How to] Install KAIK Grab Bar *make a sticky?*



What make model are the gauges in the lower part? they look like air fuel.
autometer, cobalt digital series. the bottom level from left to right is:
voltmeter for 2 auxilary batteries/ Ammeter :cool: / voltmeter for regular battery

when i have the truck turned off my auxilary batteries power everything leaving the other one alone so i can monitor the voltage of the groups of batteries differently...i like to monitor my shiznit. and i got the ammetter so i can watch the 200Amp draw of the oasis :D
