Sanden compressor FACTS and info.

I did this for the york now I will do it for the sanden (7) line.







Belt Tension
Grooves Tension, lb (kgf)
A 121 ± 5 (55 ± 2)
B 132 ± 5 (60 ± 2)
C 132 ± 5 (60 ± 2)
M 132 ± 5 (60 ± 2)
PV4 132 ± 5 (60 ± 2)
PV6 198 ± 5 (90 ± 2)


(PolyVee tension based on 33 lb (15kgf) per groove).


Speed Rating
Model Clutch Type Max RPM
Constant Downshift
SD5H14 Std. 6,000 7,000
SD5H14 HD 4,000 6,000
SD7B10 All 6,000 7,000
SD7H13 All 6,000 8,000
SD7H15 Std. 6,000 8,000
SD7H15 HD 4,000 6,000
SD7H15 SHD 4,000 4,000

Acceptable Mounting Angles



Special Service Tools
These tools can be obtained from your local tool supplier.



1. Oil Dipstick 5. Lip Seal / SD7 Seal Plate Tool 9. Rotor Installation Driver
2. Armature Plate Spanner 6. Armature Driver 10. O-Ring Hook
3. Armature Plate Puller 7. Rotor Puller Jaws
4. Rotor Puller Set 8. Shaft Seal Protective Sleeve


Standard Tools


1. External Snap Ring Pliers 4. Gasket Scraper
2. Internal Snap Ring Pliers 5. Graduated Cylinder
3. Feeler Gauges


Valve Plate Test
Suction or discharge valve breakage will cause a clacking sound at idle.
If head gasket failure occurs, discharge pressure will be low and suction pressure will be high at

idle.
Valve and gasket condition can be checked as follows:
Connect gauge set to suction and discharge service valves.
Run compressor for 5 minutes at idle and stop.
Observe time for discharge pressure and suction pressure to equalize. If less than 2 minutes, in

a TVX system, a valve or gasket may be damaged. CCOT systems will equalize more quickly.


The opinions and views expressed in the above post are the intellectual property of DJDAudio. The above mentioned information shall also hold no legal binding against Doug DeHaven in the court of law.

---\\\CALCULATE Compressor fill time HERE ///---

QUOTE: (Kevdog00) "You sir are like the Einstein of Mini Truckin'! lol"
DJDAudio is offline
Sponsored Links
Advertisement

post #2 of 85 Old 04-16-2005, 09:01 PM Thread Starter
~~<<' DRIVEN '>>~~

DJDAudio's Avatar

Join Date: Apr 2003
Location: Pittsburgh PA
Age: 36
Posts: 23,957

User is: DJDAudio is offline
Send a message via AIM to DJDAudio Send a message via Yahoo to DJDAudio
Re: Sanden compressor FACTS and info.

Clutch Inspection
1. Measure voltage at clutch. Low voltage at the clutch may be due to poor ground or power

connection, or problems with the vehicle electrical system. Check for tight fit of field coil

retaining snap ring.

2. Measure current draw when clutch is engaged. Normal current should be 3.6 - 4.2A at 12

VDC.

• Overcurrent- Short circuit within feild coil or in compressor circuit.

• No current - Open circuit.

• If a short or open is found in the field coil, it must be replaced.

3. Air Gap

• Clutch air gap should be 0.016 - 0.031 in (0.4 - 0.8 mm). Measure with a feeler guage.

• Adjust as per Section 14.6

4. Suspected Clutch Rotor Bearing Noise

• Remove drive belt.

• With clutch disengaged, rotate pulley by hand. If excessive roughness or wobble is found,

replace the clutch rotor assembly.




1. Shaft Key* 7.Valve Plate Assembly* 13. TPS Clip (Optional)
2. Felt Ring* 8. Head Gasket* 14. TPS Screw (Optional)
3. Shaft Seal Snap Ring* 9. Cylinder Head* 15. Shaft Seal Kit - 2, 3 & 4
4. Lip Seal with O-ring* 10. Cylinder Head Bolt 16. Valve Plate Kit - 6, 7 & 8
5. Oil Plug 11. Pressure Relief Valve (Optional) 17. Cylinder Head Kit - 8 & 9
6. Block Gasket* 12. Thermal Protector Switch (Optional) 18. Gasket Kit - 6 & 8



20A. Armature Dust Cover Screw (SD-5) 23. Armature Plate* 27. Rotor Assembly*
20B. Armature Dust Cover Screw (SD-7) 24. Clutch Shims* 28. Field Coil Assembly Snap Ring*
21A. Armature Dust Cover (SD-5) 25. Rotor Snap Ring* 29. Field Coil Assembly
21B. Armature Dust Cover (SD-7) 26A. Rotor Bearing Dust Cover (SD-5) 30. Accessory Kit - 1,

22, 24, 25 & 28
22. Shaft Nut* 26B. Rotor Bearing Dust Cover (SD-7) 31. Armature / Rotor Assembly Kit - 23 &

27


General Service Information
It is recommended that a new receiver-drier or accumulator-drier be installed if a compressor is

replaced or an internal repair is made.

1. Keep dirt and foreign naterial from getting on or into the compressor or the A/C system. The

area around the A/C hose fittings should be carefully cleaned with a non-petroleum based

solvent before the connections are broken. All parts to be re-used or installed should be cleaned

with a non-petroleum based solvent and blown dry with clean compressed air or lint-free cloths.

2. Trouble-free installation and operation of an SD compressor require:

The opinions and views expressed in the above post are the intellectual property of DJDAudio. The above mentioned information shall also hold no legal binding against Doug DeHaven in the court of law.

---\\\CALCULATE Compressor fill time HERE ///---

QUOTE: (Kevdog00) "You sir are like the Einstein of Mini Truckin'! lol"
DJDAudio is offline
post #3 of 85 Old 04-16-2005, 09:02 PM Thread Starter
~~<<' DRIVEN '>>~~

DJDAudio's Avatar

Join Date: Apr 2003
Location: Pittsburgh PA
Age: 36
Posts: 23,957

User is: DJDAudio is offline
Send a message via AIM to DJDAudio Send a message via Yahoo to DJDAudio
Re: Sanden compressor FACTS and info.

Correct pulley alignment
Correct fit of compressor mounting surfaces to the bracket and correct fit of the bracket to the

engine. Clearance between compressor and bracket should not exceed 0.2mm (0.008in) per ear

for ear-mount compressors or 0.4mm (0.016in) total for 2 ears.
Correct torque of all mounting bolts and nuts
Correct drive belt tension
3. Never operate the compressor at high speed or for a prolonged time without a sufficient

refrigerant charge in the system. Probable results are overheating, internal damage and seizure.

4. If an internal repair is performed on an R134a compressor, evacuate the A/C system for at

least 45 minutes before recharging to remove moisture which may have been absorbed by the

PAG oil in the compressor.

5. Parts which require lubrication before assembly, such as O-rings, should be lubricated with

clean 5GS refrigerant oil.


1. Before any internal repair is done, drain the oil from the compressor.
Remove the oil plug and drain as much oil as possible into a suitable container.
Remove the caps (if present) from suction and discharge ports
Drain oil from the suction and discharge ports into a suitable container while turning the shaft

clockwise only with a socket wrench on the armature retaining nut


2. Measure and record the amount of oil drained from the compressor.

3. Inspect the oil for signs of contamination such as discoloration of foreign material.

4. Perform repair to the compressor.


5. Add the same amount of new oil to the compressor as was measured in step 2. Be sure to

use the correct oil for the compressor as shown in Section 6.3.

6. Re-install oil plug. Seal and O-ring must be clean and not damaged. Torque to 11-15 ft•lb (15

-20 N•m, 150-200 kgf•cm). Be careful not to cross thread the oil plug.

7. It is recommended that the oil quantity be confirmed after re-installation of the compressor to

the vehicle as per Section 10.2.

Oil Charge Determination for Long Hose Applications
13.4.1 TXV Systems, Less than 56 oz. (1600g) Refrigerant Charge
1. The desired oil charge for the systems with unusually long hoses, such as trucks, tractors,

etc., can be determined based on the total refrigerant charge when less than 56 oz. (1600g)

refrigerant is used.
2. Calculate the desired oil charge as below:
SD5H14: Oil amount (fl.oz.) = (Refrigerant charge in oz. x 0.125) + 1.35. Oil amount (cc) = (

Refrigerant charge in grams x 0.125) + 40.

SD7H15: Oil amount (fl.oz.) = [(Refrigerant charge in oz. x 0.06) + 2.2] ÷ 0.9. Oil amount (cc) =

[(Refrigerant charge in grams x 0.06) + 60] ÷ 0.9.

3. For a new compressor to be used in this type of system, subtract the standard oil charge

shown in Section 6.3 from the desired total oil charge to determine how much oil should be

added to the compressor.

4. Remove the oil filler plug and charge the compressor with the amount of additional oil

determined in step 3. Use only new oil of the correct type as shown in Section 6.3.

5. Re-install oil plug. Seat and O-ring must be clean and not damaged. Torque to 11-18 ft•lb (15

-25 N•m, 150-200 kgf•cm).



Comp. RPM Oil in compressor
fl.oz cc
1,000 3.4 100
2,000 2.5 75
3,000 1.7 50
4,000 1.3 40
5,000 1.2 35

The opinions and views expressed in the above post are the intellectual property of DJDAudio. The above mentioned information shall also hold no legal binding against Doug DeHaven in the court of law.

---\\\CALCULATE Compressor fill time HERE ///---

QUOTE: (Kevdog00) "You sir are like the Einstein of Mini Truckin'! lol"
DJDAudio is offline

post #4 of 85 Old 04-16-2005, 09:02 PM Thread Starter
~~<<' DRIVEN '>>~~

DJDAudio's Avatar

Join Date: Apr 2003
Location: Pittsburgh PA
Age: 36
Posts: 23,957

User is: DJDAudio is offline
Send a message via AIM to DJDAudio Send a message via Yahoo to DJDAudio
Re: Sanden compressor FACTS and info.

14.1a Keyed Shaft Armature Removal
(Note: Keyed shaft can be identified in that the holes for the armature plate spanner will have

threads in them.)



If armature dust cover is present, remove the 3 or 6 bolts holding it in place and remove cover. If

auxilliary sheet metal pulley is present, remove the screws holding it in place. Then remove

pulley.
Insert pins of armature plate spanner into threaded holes of armature assembly.
Hold armature assembly stationary while removing retaining nut with 3/4", 19mm or 14mm

socket wrench, as appropriate.
Remove armature assembly using puller. Thread 3 puller bolts into the threaded holes in the

armature assembly. Turn center screw clockwise until armature assembly comes loose.
If shims are above shaft key, remove them now. If shims are below shaft key, the key and

bearing dust cover (if present) must be removed before shims can be removed.
Remove bearing dust cover (if present). Use caution to prevent distorting cover when removing

it.
Remove shaft key by tapping loose with a flat blade screwdriver and hammer.
Remove shims. Use a pointed tool and a small screwdriver to prevent the shims from binding

on the shaft.



1. If armature dust cover is present, remove the 3 or 6 bolts holding it in place and remove

cover. If auxillary sheet metal pulley is present, remove the screws holding it in place. Then

remove pulley.

2. Insert pins of armature plate spanner into threaded holes of armature assembly.

3. Hold armature assembly stationary while removing retaining nut with 3/4", 19mm, or 14mm

socket wrench, as appropriate.

4. Lift off armature plate with fingers. If armature does not come off easily, spray an anti seize oil

into shaft to loosen. Armature plate can also be loosened by gently prying between rotor and

armature plate with two flat screwdrivers.


5. Remove bearing dust cover (if present). Use caution to prevent distorting cover when

removing it.

6. Remove shims. Use a pointed tool and a small screwdriver to prevent the shims from binding

on the shaft.



Field Coil Assembly Removal
Loosen lead wire clamp screw with #2 Phillips screwdriver until wire(s) can be slipped out from

under clamp.
Undo any wire connections on the compressor which would prevent removal of the field coil

assembly.
Remove snap ring
Remove the field coil assembly

The opinions and views expressed in the above post are the intellectual property of DJDAudio. The above mentioned information shall also hold no legal binding against Doug DeHaven in the court of law.

---\\\CALCULATE Compressor fill time HERE ///---

QUOTE: (Kevdog00) "You sir are like the Einstein of Mini Truckin'! lol"
DJDAudio is offline
post #5 of 85 Old 04-16-2005, 09:02 PM Thread Starter
~~<<' DRIVEN '>>~~

DJDAudio's Avatar

Join Date: Apr 2003
Location: Pittsburgh PA
Age: 36
Posts: 23,957

User is: DJDAudio is offline
Send a message via AIM to DJDAudio Send a message via Yahoo to DJDAudio
Re: Sanden compressor FACTS and info.





6. Check air gap with feeler gauge. Specification is 0.016" -0.031" (0.4 - 0.8mm). If gap is not

even around the clutch, gently tap down at the high spots. If the overall gap is out of spec.,

remove the armature assembly and change the shims as necessary.

7. Replace armature dust cover (if used) and torque 3 or 6 bolts to specification below.

3 - 1/4-20 bolts (SD-5): 2-4 ft•lb (2-5 N•m, 25-50 kgf•cm)

6 - M5 bolts (SD-7): 5-8 ft•lb (7-11 N•m, 70-110 kgf•cm)

*Note: Over torque of SD508/SH14 dust cover bolts will cause air gap to become out of spec.




Replacement of Lip Type Shaft Seal (SD5H14, SD7B10, SD7H13, SD7H15)
Note: Lip seal assembly and felt ring must never be reused. Always replace these components.

1. Be sure all gas pressure inside the compressor has been relieved.





2. Remove armature dust cover (if used), armature assembly, rotor bearing dust cover (if used),

shaft key, and clutch shims as per section 14.1.





3. Insert the points of a pair of snap ring pliers into the holes of the felt ring retainer and pry out

the retainer and felt ring.





4. Remove seal snap ring with internal snap ring pliers.


5. Use lip seal removal and installation tool to remove lip seal assembly. Twist the tool until the 2

lips on the tool engage the slots in the lip seal housing and pull the seal out with a twisting

motion.





6. Clean out shaft seal cavity thoroughly. Debris can be removed using a non-petroleum based

solvent and lint free cloth. The area should then be blown out with clean, dry compressed air.

Make sure all foreign material is completely removed.





7. Place shaft seal protective sleeve over compressor shaft. Inspect the sleeve to ensure that it

has no scratches and is smooth so that the lip seal will not be damaged. Make sure there is no

gap between the end of the sleeve and the seal surface on the shaft.





8. Engage the lips of the seal removal and installation tool with the slots in the new lip seal

housing. Make sure the lip seal assembly, especially the O-ring, is clean. Dip the entire lip seal

assembly, on the tool, into clean 5GS refrigerant oil. Make sure the seal assembly is completely

covered with oil.

The opinions and views expressed in the above post are the intellectual property of DJDAudio. The above mentioned information shall also hold no legal binding against Doug DeHaven in the court of law.

---\\\CALCULATE Compressor fill time HERE ///---

QUOTE: (Kevdog00) "You sir are like the Einstein of Mini Truckin'! lol"
DJDAudio is offline
post #6 of 85 Old 04-16-2005, 09:02 PM Thread Starter
~~<<' DRIVEN '>>~~

DJDAudio's Avatar

Join Date: Apr 2003
Location: Pittsburgh PA
Age: 36
Posts: 23,957

User is: DJDAudio is offline
Send a message via AIM to DJDAudio Send a message via Yahoo to DJDAudio
Re: Sanden compressor FACTS and info.

9. Install lip seal over shaft and press firmly to seat. Twist the tool in the opposite direction to

disengage it from the seal and withdraw the tool.




10. Reinstall shaft seal snap ring with internal snap ring pliers. Beveled side should face up (

outward/away from compressor body). Ensure that snap ring is completely seated in groove. It

may be necessary to tap the snap ring lightly to seat it in the groove.


11. Tap new felt ring assembly into place.



12. Reinstall clutch shims, shaft key, rotor bearing dust cover (if used), and armature assembly

as described in Section 14.6







Cylinder Head Removal

1. Be sure all internal compressor pressure has been relieved.



2. Inspect cylinder head for fitting or thread damage. Replace if damaged



3. Remove cylinder head bolts.



4. Use a small hammer and gasket scraper to separate the cylinder head from the valve plate.

Be careful not to scratch the gasket surface of the cylinder head.



5. Carefully lift the cylinder head from the valve plate.







6. It is recommended that both the head gasket (between the cylinder head and the valve plate)

and the block gasket (between the valve plate and the cylinder block) be replaced any time the

cylinder head is removed. However, if no service is required to the valve plate, it may be left in

place. If the valve plate comes loose from the cylinder block, the block gasket must be replaced.



7. Carefully remove old head gasket from top of valve plate with gasket scraper. Be careful not

to disturb the valve plate to cylinder block joint if valve plate has been left in place. If valve plate

comes loose from cylinder block, proceed to Section 16.2, Valve Plate Removal, and replace

block gasket.





Valve Plate Removal
1. Using a small hammer and gasket scraper, carefully separate valve plate from cylinder block.

Be careful not to damage sealing surface of cylinder block.

2. Inspect reed valves and retainer. Replace valve plate assembly if any part is damaged.

3. Carefully remove any gasket material remaining on valve plate, cylinder block or cylinder

head. Do not damage sealing surfaces on components.



The opinions and views expressed in the above post are the intellectual property of DJDAudio. The above mentioned information shall also hold no legal binding against Doug DeHaven in the court of law.

---\\\CALCULATE Compressor fill time HERE ///---

QUOTE: (Kevdog00) "You sir are like the Einstein of Mini Truckin'! lol"
DJDAudio is offline
post #7 of 85 Old 04-16-2005, 09:03 PM Thread Starter
~~<<' DRIVEN '>>~~

DJDAudio's Avatar

Join Date: Apr 2003
Location: Pittsburgh PA
Age: 36
Posts: 23,957

User is: DJDAudio is offline
Send a message via AIM to DJDAudio Send a message via Yahoo to DJDAudio
Re: Sanden compressor FACTS and info.

Valve Plate and Cylinder Head Installation
1. Large gasket: OD of block gasket is 4-3/4" (120mm) and sealing face of block does not have

a 4-1/2" (114.7mm) diameter step.

2. Small gasket: OD of gasket is 4-1/2" (114.7mm) and sealing face of the cylinder block has a

4-1/2" (114.7mm) diameter step.

3. Coat new block gasket with clean 5GS refrigerant oil.

4. Install block gasket. Align new gasket to location pin holes and orifice(s). Notch (if present)

should face same direction as oil plug or adaptor.

5. Place valve plate on cylinder block with discharge valve, retainer and nut facing up (away from

cylinder block) and location pins properly located in holes.

6. Use vacuum pump and small tube to remove residual oil from each bolt hole. If this step is

not performed, hydraulic pressure can be created when the cylinder head bolts are tightened.

This pressure can break the cylinder block.

7. Coat head gasket with clean 5GS refrigerant oil.

8. Install head gasket cover location pins, checking for correct orientation.

9. Install cylinder head.

10. Install cylinder head bolts and tighten in a star pattern. Torque first to approximately 14 ft•lbf

(19.6 N•m, 200 kgf•cm), then finish by torquing to 24-27 ft•lbf (32.4-36.3 N•m, 330-370kgf•cm).




all of the 7 line of compessors have the same displacement and at max RPM 6,000 it is around

3.4 CFM at 140 PSI.

to find the CFM at what pressure you run it at use this below,

take the pressure you want and add 14.7 to it. now devide by '14.7' now take that number and

devide it from '32.986' that will give you the CFM at that pressure.

If there is anything I missed please let me know.

if this helps you also let me know

The opinions and views expressed in the above post are the intellectual property of DJDAudio. The above mentioned information shall also hold no legal binding against Doug DeHaven in the court of law.

---\\\CALCULATE Compressor fill time HERE ///---

QUOTE: (Kevdog00) "You sir are like the Einstein of Mini Truckin'! lol"
DJDAudio is offline
post #8 of 85 Old 04-16-2005, 09:09 PM Thread Starter
~~<<' DRIVEN '>>~~

DJDAudio's Avatar

Join Date: Apr 2003
Location: Pittsburgh PA
Age: 36
Posts: 23,957

User is: DJDAudio is offline
Send a message via AIM to DJDAudio Send a message via Yahoo to DJDAudio
Re: Sanden compressor FACTS and info.

missed two



The opinions and views expressed in the above post are the intellectual property of DJDAudio. The above mentioned information shall also hold no legal binding against Doug DeHaven in the court of law.

---\\\CALCULATE Compressor fill time HERE ///---

QUOTE: (Kevdog00) "You sir are like the Einstein of Mini Truckin'! lol"

Last edited by DJDAudio; 10-06-2005 at 10:38 AM.
DJDAudio is offline
post #9 of 85 Old 04-17-2005, 08:56 AM Thread Starter
~~<<' DRIVEN '>>~~

DJDAudio's Avatar

Join Date: Apr 2003
Location: Pittsburgh PA
Age: 36
Posts: 23,957

User is: DJDAudio is offline
Send a message via AIM to DJDAudio Send a message via Yahoo to DJDAudio
Re: Sanden compressor FACTS and info.


The opinions and views expressed in the above post are the intellectual property of DJDAudio. The above mentioned information shall also hold no legal binding against Doug DeHaven in the court of law.

---\\\CALCULATE Compressor fill time HERE ///---

QUOTE: (Kevdog00) "You sir are like the Einstein of Mini Truckin'! lol"
DJDAudio is offline
post #10 of 85 Old 04-17-2005, 11:54 AM
cab
I <3 SPARKS

cab's Avatar

Join Date: Nov 2002
Location: Gulf Shores, AL
Age: 32
Posts: 7,977

User is: cab is offline
Send a message via AIM to cab
Re: Sanden compressor FACTS and info.

damn, lol
cab is offline
post #11 of 85 Old 04-17-2005, 01:32 PM
FATBOY

994.3sportside's Avatar

Join Date: Jul 2003
Location: Kentucky
Age: 35
Posts: 247

User is: 994.3sportside is offline
Send a message via Yahoo to 994.3sportside
Re: Sanden compressor FACTS and info.

Lol I guess we can all be Sanden techs now!

'99 4.3 auto
Black reg. cab sportside
Performance: Ebay intake, MAF descreened, 2.5" Magnaflow, WAIT4ME Performance PCM
Appearance: AHL mod, DRL mod, Shaved emblems, Goodmark Gen. 2 Hood, Clear Corners, Billet Bowtie, 17" BC Smoothie 2's
Suspension: 3/3 drop using Belltech, DJM, and Bilstien
994.3sportside is offline
post #12 of 85 Old 04-17-2005, 02:49 PM
Registered User

sketchystreet's Avatar

Join Date: Oct 2003
Location: Philadelphia Burbs, PA
Age: 32
Posts: 934

User is: sketchystreet is offline
Send a message via AIM to sketchystreet
Re: Sanden compressor FACTS and info.

do you know the model number on the serpintine clutch? i went to autozone and they dont know shit.
sketchystreet is offline
post #13 of 85 Old 04-18-2005, 06:34 AM
ITS NOT EASY BEING EASY
MODERATOR

Dragginbody's Avatar

Join Date: Nov 2003
Location: LORAIN OHIO
Posts: 19,339

User is: Dragginbody is offline
Send a message via AIM to Dragginbody Send a message via Yahoo to Dragginbody
Re: Sanden compressor FACTS and info.

damn thats alot of info

[email protected]

440 258 6600 - kris
Dragginbody is offline
post #14 of 85 Old 06-01-2005, 08:33 AM
ITS NOT EASY BEING EASY
MODERATOR

Dragginbody's Avatar

Join Date: Nov 2003
Location: LORAIN OHIO
Posts: 19,339

User is: Dragginbody is offline
Send a message via AIM to Dragginbody Send a message via Yahoo to Dragginbody
Re: Sanden compressor FACTS and info.

bump for a awesome compressor

[email protected]

440 258 6600 - kris
Dragginbody is offline
post #15 of 85 Old 06-01-2005, 12:10 PM Thread Starter
~~<<' DRIVEN '>>~~

DJDAudio's Avatar

Join Date: Apr 2003
Location: Pittsburgh PA
Age: 36
Posts: 23,957

User is: DJDAudio is offline
Send a message via AIM to DJDAudio Send a message via Yahoo to DJDAudio
Re: Sanden compressor FACTS and info.

Quote:
Originally Posted by Dragginbody
bump for a awesome compressor

ha ha that it is.
they have soooo much less vibration. brackets last longer

The opinions and views expressed in the above post are the intellectual property of DJDAudio. The above mentioned information shall also hold no legal binding against Doug DeHaven in the court of law.

---\\\CALCULATE Compressor fill time HERE ///---

QUOTE: (Kevdog00) "You sir are like the Einstein of Mini Truckin'! lol"
DJDAudio is offline
post #16 of 85 Old 06-01-2005, 09:52 PM
ITS NOT EASY BEING EASY
MODERATOR

Dragginbody's Avatar

Join Date: Nov 2003
Location: LORAIN OHIO
Posts: 19,339

User is: Dragginbody is offline
Send a message via AIM to Dragginbody Send a message via Yahoo to Dragginbody
Re: Sanden compressor FACTS and info.

i have been running the sandens since like 2001 when i first bagged one of my trucks..

they dont pump any oil and look alot better.

[email protected]

440 258 6600 - kris
Dragginbody is offline
post #17 of 85 Old 09-28-2005, 09:07 PM Thread Starter
~~<<' DRIVEN '>>~~

DJDAudio's Avatar

Join Date: Apr 2003
Location: Pittsburgh PA
Age: 36
Posts: 23,957

User is: DJDAudio is offline
Send a message via AIM to DJDAudio Send a message via Yahoo to DJDAudio
Re: Sanden compressor FACTS and info.





http://www.heco.net/Compressor.htm

The opinions and views expressed in the above post are the intellectual property of DJDAudio. The above mentioned information shall also hold no legal binding against Doug DeHaven in the court of law.

---\\\CALCULATE Compressor fill time HERE ///---

QUOTE: (Kevdog00) "You sir are like the Einstein of Mini Truckin'! lol"
DJDAudio is offline
post #18 of 85 Old 09-28-2005, 09:15 PM
ITS NOT EASY BEING EASY
MODERATOR

Dragginbody's Avatar

Join Date: Nov 2003
Location: LORAIN OHIO
Posts: 19,339

User is: Dragginbody is offline
Send a message via AIM to Dragginbody Send a message via Yahoo to Dragginbody
Re: Sanden compressor FACTS and info.

doug find me 2 new backing plates cheap for my sd5 h14 comps!

[email protected]

440 258 6600 - kris
Dragginbody is offline
post #19 of 85 Old 09-28-2005, 09:21 PM Thread Starter
~~<<' DRIVEN '>>~~

DJDAudio's Avatar

Join Date: Apr 2003
Location: Pittsburgh PA
Age: 36
Posts: 23,957

User is: DJDAudio is offline
Send a message via AIM to DJDAudio Send a message via Yahoo to DJDAudio
Re: Sanden compressor FACTS and info.

Quote:
Originally Posted by Dragginbody
doug find me 2 new backing plates cheap for my sd5 h14 comps!

lol will try

The opinions and views expressed in the above post are the intellectual property of DJDAudio. The above mentioned information shall also hold no legal binding against Doug DeHaven in the court of law.

---\\\CALCULATE Compressor fill time HERE ///---

QUOTE: (Kevdog00) "You sir are like the Einstein of Mini Truckin'! lol"
DJDAudio is offline
post #20 of 85 Old 09-28-2005, 09:25 PM
ITS NOT EASY BEING EASY
MODERATOR

Dragginbody's Avatar

Join Date: Nov 2003
Location: LORAIN OHIO
Posts: 19,339

User is: Dragginbody is offline
Send a message via AIM to Dragginbody Send a message via Yahoo to Dragginbody
Re: Sanden compressor FACTS and info.

that would be awesome. both of mine leak at the head.

[email protected]

440 258 6600 - kris
Dragginbody is offline
post #21 of 85 Old 09-28-2005, 09:29 PM Thread Starter
~~<<' DRIVEN '>>~~

DJDAudio's Avatar

Join Date: Apr 2003
Location: Pittsburgh PA
Age: 36
Posts: 23,957

User is: DJDAudio is offline
Send a message via AIM to DJDAudio Send a message via Yahoo to DJDAudio
Re: Sanden compressor FACTS and info.

Quote:
Originally Posted by Dragginbody
that would be awesome. both of mine leak at the head.

look slike that is part of the case and not a rebuild so not any one has them as a part. but I would buy a junk one and use its parts

or maby call sanden.

The opinions and views expressed in the above post are the intellectual property of DJDAudio. The above mentioned information shall also hold no legal binding against Doug DeHaven in the court of law.

---\\\CALCULATE Compressor fill time HERE ///---

QUOTE: (Kevdog00) "You sir are like the Einstein of Mini Truckin'! lol"
DJDAudio is offline
post #22 of 85 Old 09-28-2005, 09:30 PM Thread Starter
~~<<' DRIVEN '>>~~

DJDAudio's Avatar

Join Date: Apr 2003
Location: Pittsburgh PA
Age: 36
Posts: 23,957

User is: DJDAudio is offline
Send a message via AIM to DJDAudio Send a message via Yahoo to DJDAudio
Re: Sanden compressor FACTS and info.

Quote:
Originally Posted by Dragginbody
that would be awesome. both of mine leak at the head.

look slike that is part of the case and not a rebuild so not any one has them as a part. but I would buy a junk one and use its parts

or maby call sanden.

here ar the comon parts,
http://www.sanden.com/parts/sd5.html

The opinions and views expressed in the above post are the intellectual property of DJDAudio. The above mentioned information shall also hold no legal binding against Doug DeHaven in the court of law.

---\\\CALCULATE Compressor fill time HERE ///---

QUOTE: (Kevdog00) "You sir are like the Einstein of Mini Truckin'! lol"
DJDAudio is offline
post #23 of 85 Old 09-28-2005, 09:47 PM
ITS NOT EASY BEING EASY
MODERATOR

Dragginbody's Avatar

Join Date: Nov 2003
Location: LORAIN OHIO
Posts: 19,339

User is: Dragginbody is offline
Send a message via AIM to Dragginbody Send a message via Yahoo to Dragginbody
Re: Sanden compressor FACTS and info.

ya i already talked to sanden, they had a dealer in the us call me and wanted 89 each for them. ya right

i cant find them locally at my yards.
i been checking ebay. i got like 4 new clutches from ebay just for spares.

[email protected]

440 258 6600 - kris
Dragginbody is offline
post #24 of 85 Old 09-29-2005, 01:51 AM
Work in Progress!!

95 S-DIME2.2's Avatar

Join Date: Dec 2004
Location: Phoenix, AZ
Age: 31
Posts: 280

User is: 95 S-DIME2.2 is offline
Send a message via AIM to 95 S-DIME2.2
Re: Sanden compressor FACTS and info.

how are the SD 709's and how hard would it be to put one on my 95 2.2 s10? i think i would probably be able to get one for nearly nothing if i think i will be able to put it on my truck.

Cliff

95' dime SD 5-link w/ contitech 28's in rear and airlift 2b7's up front 357 2-bolt auto stepside 15" Stock swirls ram air hood

Soon to come: Get her back on the road!!!

My Photobucket
95 S-DIME2.2 is offline
post #25 of 85 Old 09-29-2005, 02:11 AM
ITS NOT EASY BEING EASY
MODERATOR

Dragginbody's Avatar

Join Date: Nov 2003
Location: LORAIN OHIO
Posts: 19,339

User is: Dragginbody is offline
Send a message via AIM to Dragginbody Send a message via Yahoo to Dragginbody
Re: Sanden compressor FACTS and info.

Quote:
Originally Posted by 95 S-DIME2.2
how are the SD 709's and how hard would it be to put one on my 95 2.2 s10? i think i would probably be able to get one for nearly nothing if i think i will be able to put it on my truck.

i mounted 2 on my 94 2.2. u can modify the stock ac location and bolt a sanden right up.





[email protected]

440 258 6600 - kris
Dragginbody is offline
post #26 of 85 Old 09-29-2005, 09:19 AM
Registered User

Join Date: Feb 2004
Posts: 840

User is: KA98S10 is offline
Re: Sanden compressor FACTS and info.

2!?

How fast does that air up?

SOLD MY TRUCK Pimpin a Blazer
KA98S10 is offline
post #27 of 85 Old 10-06-2005, 10:46 AM Thread Starter
~~<<' DRIVEN '>>~~

DJDAudio's Avatar

Join Date: Apr 2003
Location: Pittsburgh PA
Age: 36
Posts: 23,957

User is: DJDAudio is offline
Send a message via AIM to DJDAudio Send a message via Yahoo to DJDAudio
Re: Sanden compressor FACTS and info.

http://www.sanden.com/support/servic..._contents.html

The opinions and views expressed in the above post are the intellectual property of DJDAudio. The above mentioned information shall also hold no legal binding against Doug DeHaven in the court of law.

---\\\CALCULATE Compressor fill time HERE ///---

QUOTE: (Kevdog00) "You sir are like the Einstein of Mini Truckin'! lol"
DJDAudio is offline
post #28 of 85 Old 10-07-2005, 04:11 PM
get laid/commit suicide

neel2008's Avatar

Join Date: Aug 2005
Location: Huntington, Indiana
Age: 29
Posts: 3,222

User is: neel2008 is offline
Send a message via AIM to neel2008 Send a message via MSN to neel2008 Send a message via Yahoo to neel2008
Re: Sanden compressor FACTS and info.

i'm confussed about the oiling system, it looks like you are basicly mixing the oil the the air going in, which i understand, but how do you get the oil back out of the air so you can send the air to your tank?

97 Geo Metro 3 cylinder/5 speed, Daily beater
90 S10 project truck, bagged, apart for 5link install, shave, trad. body drop, 20" Boss wheels, suicide doors, paint, interior, etc
95 GMC K2500 x-cab, long bed, 6.5 diesel/4l80e
02 Honda CBR600 F4i-daily, power commander, exhaust, +4 rear gearing, lowered, future turbo build
And some other junk....
neel2008 is offline
post #29 of 85 Old 10-07-2005, 04:20 PM
Registered User

brizag's Avatar

Join Date: Dec 2004
Posts: 148

User is: brizag is offline
Re: Sanden compressor FACTS and info.

im wondering the same thing ???
brizag is offline
post #30 of 85 Old 10-10-2005, 01:51 PM Thread Starter
~~<<' DRIVEN '>>~~

DJDAudio's Avatar

Join Date: Apr 2003
Location: Pittsburgh PA
Age: 36
Posts: 23,957

User is: DJDAudio is offline
Send a message via AIM to DJDAudio Send a message via Yahoo to DJDAudio
Re: Sanden compressor FACTS and info.

I converted mine to greese , nice clean oil free air out and no oiler

more details when I get home.

The opinions and views expressed in the above post are the intellectual property of DJDAudio. The above mentioned information shall also hold no legal binding against Doug DeHaven in the court of law.

---\\\CALCULATE Compressor fill time HERE ///---

QUOTE: (Kevdog00) "You sir are like the Einstein of Mini Truckin'! lol"
DJDAudio is offline
post #31 of 85 Old 10-10-2005, 03:36 PM
Completly Useless Truck

GETNLWR's Avatar

Join Date: May 2005
Location: MYOB
Posts: 2,489

User is: GETNLWR is offline
Send a message via AIM to GETNLWR
Re: Sanden compressor FACTS and info.

Quote:
Originally Posted by DJDAudio
I converted mine to greese , nice clean oil free air out and no oiler

more details when I get home.
WTF?

Quote:
Originally Posted by HouseOfAtlas
(Trying to think like Doug) DJDAudio: If you do E=MC squared, you can see that a 2 link just won't work right with the Earth's rotational force.
Quote:
Originally Posted by Speedy2222
for the last 10-20 mins i have been trying to find the freaking glove box on this thing and i just don't see one.
Quote:
Give a man a fish and he eats for a day, teach a man to fish and he eats for a lifetime. Take my fish and eat lead.
GETNLWR is offline
post #32 of 85 Old 10-11-2005, 11:25 PM
ROLL N LOW

Join Date: Apr 2002
Location: Upstate New York
Age: 49
Posts: 140

User is: famous93 is offline
Re: Sanden compressor FACTS and info.

Your still not home? Give us some more info on this.


Quote:
Originally Posted by DJDAudio
I converted mine to greese , nice clean oil free air out and no oiler

more details when I get home.
famous93 is offline
post #33 of 85 Old 10-12-2005, 12:39 AM
Registered User

cali_ryde's Avatar

Join Date: Mar 2004
Location: BAY AREA!
Age: 33
Posts: 868

User is: cali_ryde is offline
Send a message via AIM to cali_ryde
Re: Sanden compressor FACTS and info.

wow greese?!? i need this info, im sick of worryin about the oil on my york. prolly gonna switch to a sanden this summer.

99' 2.2L, K&N air filter ... bagged and plans to add on. Finally got an EDC
Check out my truck
http://www.cardomain.com/memberpage/580250
cali_ryde is offline
post #34 of 85 Old 10-12-2005, 07:43 AM Thread Starter
~~<<' DRIVEN '>>~~

DJDAudio's Avatar

Join Date: Apr 2003
Location: Pittsburgh PA
Age: 36
Posts: 23,957

User is: DJDAudio is offline
Send a message via AIM to DJDAudio Send a message via Yahoo to DJDAudio
Re: Sanden compressor FACTS and info.

Quote:
Originally Posted by cali_ryde
wow greese?!? i need this info, im sick of worryin about the oil on my york. prolly gonna switch to a sanden this summer.

lol,

I am working on the test numbers still,

but I blocked all origional oil passages and ripped it completely apart and removed all oil, tne coated all joints with greese and filled a little into the crank case and cyl walls,

I am going o stick a hour meter on it and just let her run till she gets supper hot or locks up to see what will happen,

but I will post up the vid soon, showing the oil just flying past the piston rings,
it is so sad.

The opinions and views expressed in the above post are the intellectual property of DJDAudio. The above mentioned information shall also hold no legal binding against Doug DeHaven in the court of law.

---\\\CALCULATE Compressor fill time HERE ///---

QUOTE: (Kevdog00) "You sir are like the Einstein of Mini Truckin'! lol"
DJDAudio is offline
post #35 of 85 Old 12-14-2005, 11:49 AM Thread Starter
~~<<' DRIVEN '>>~~

DJDAudio's Avatar

Join Date: Apr 2003
Location: Pittsburgh PA
Age: 36
Posts: 23,957

User is: DJDAudio is offline
Send a message via AIM to DJDAudio Send a message via Yahoo to DJDAudio
Re: Sanden compressor FACTS and info.

How to check your oil level

http://www.sanden.com/support/servic...ures.html#10.2

The opinions and views expressed in the above post are the intellectual property of DJDAudio. The above mentioned information shall also hold no legal binding against Doug DeHaven in the court of law.

---\\\CALCULATE Compressor fill time HERE ///---

QUOTE: (Kevdog00) "You sir are like the Einstein of Mini Truckin'! lol"
DJDAudio is offline
post #36 of 85 Old 12-14-2005, 03:32 PM
Registered User

DailyDrivenDime's Avatar

Join Date: Jun 2005
Location: Greenville(ECU) Richlands(home) NC
Age: 31
Posts: 3,787

User is: DailyDrivenDime is offline
Re: Sanden compressor FACTS and info.

Quote:
Originally Posted by DJDAudio
did you write that or find it?

B-rett
yo
DailyDrivenDime is offline
post #37 of 85 Old 12-14-2005, 04:28 PM Thread Starter
~~<<' DRIVEN '>>~~

DJDAudio's Avatar

Join Date: Apr 2003
Location: Pittsburgh PA
Age: 36
Posts: 23,957

User is: DJDAudio is offline
Send a message via AIM to DJDAudio Send a message via Yahoo to DJDAudio
Re: Sanden compressor FACTS and info.

Quote:
Originally Posted by DailyDrivenDime
did you write that or find it?

I wish I did lol,

Found it on Sanden's web site.

The opinions and views expressed in the above post are the intellectual property of DJDAudio. The above mentioned information shall also hold no legal binding against Doug DeHaven in the court of law.

---\\\CALCULATE Compressor fill time HERE ///---

QUOTE: (Kevdog00) "You sir are like the Einstein of Mini Truckin'! lol"
DJDAudio is offline
post #38 of 85 Old 12-14-2005, 09:55 PM
Registered User

DailyDrivenDime's Avatar

Join Date: Jun 2005
Location: Greenville(ECU) Richlands(home) NC
Age: 31
Posts: 3,787

User is: DailyDrivenDime is offline
Re: Sanden compressor FACTS and info.

ooo nice find im still gettin everything together for my sanden install

B-rett
yo
DailyDrivenDime is offline
post #39 of 85 Old 12-14-2005, 11:40 PM
Lifted 2wd & Bodied 4x4

layinbody31's Avatar

Join Date: Jul 2004
Location: Cedar Lake, IN
Age: 33
Posts: 13,484

User is: layinbody31 is offline
Send a message via AIM to layinbody31 Send a message via MSN to layinbody31
layinbody31 is offline
post #40 of 85 Old 12-15-2005, 10:29 AM Thread Starter
~~<<' DRIVEN '>>~~

DJDAudio's Avatar

Join Date: Apr 2003
Location: Pittsburgh PA
Age: 36
Posts: 23,957

User is: DJDAudio is offline
Send a message via AIM to DJDAudio Send a message via Yahoo to DJDAudio
Re: Sanden compressor FACTS and info.

Quote:
Originally Posted by layinbody31
did I influence this find?
\
ha ha ayup

The opinions and views expressed in the above post are the intellectual property of DJDAudio. The above mentioned information shall also hold no legal binding against Doug DeHaven in the court of law.

---\\\CALCULATE Compressor fill time HERE ///---

QUOTE: (Kevdog00) "You sir are like the Einstein of Mini Truckin'! lol"
DJDAudio is offline
post #41 of 85 Old 08-13-2007, 02:28 AM
Registered User

Join Date: Aug 2007
Posts: 1

User is: kiwipete is offline
Re: Sanden compressor FACTS and info.

Hi guys, a newbie here.

I have a SD7B10 here and am wanting to use it as an air compressor to fill a small air tank on my 4x4 as well as for inflating tyres etc.

Are there any issues in using this model, given that I dont seem to be able to locate any form of oil filler etc on it.
kiwipete is offline
post #42 of 85 Old 09-18-2008, 04:48 PM
Extended cab or no cab.

cpolaris502's Avatar

Join Date: Jul 2005
Location: Minnesota
Age: 30
Posts: 19,978

User is: cpolaris502 is offline
Re: Sanden compressor FACTS and info.

since all of the pictures and links are all dead, i am wondering how to check the oil level on my 508. i it mounted with the plug on top of the compressor, how can i tell how much oil is in it? ive just been adding some every few days so far.

Cory - TWISTED KONCEPTS
1999 2dr Blazer-Bagged and V8'd {Build Thread}
2005 Silverado 2wd 4/6'd. 402ci LSx/4L80e/turbo 800whp, 20psi boost---- Build Thread
1982 2wd Chevy C30 Crewcab Dually, 454/Manual
2001 Audi B5 S4
cpolaris502 is offline
post #43 of 85 Old 09-18-2008, 05:50 PM
Registered User

jeffery_843's Avatar

Join Date: Dec 2007
Location: goose creek,sc
Age: 34
Posts: 1,432

User is: jeffery_843 is offline
Re: Sanden compressor FACTS and info.

all the info you could want on one is right here. still not very helpful on how much oil you need though.
http://sanden.com/images/SD_Service_Guide_Rev.2.pdf

Quote:
Originally Posted by 2Lo4aFatHoe View Post
cause putting a ford part on a chevy is like having sex with a fat chick. sure, you got your jollies off and she did the job.....but you don't want to go telling your friends what happened.
jeffery_843 is offline
post #44 of 85 Old 11-30-2008, 02:51 PM
Drag That Poopy

lowlaynsten's Avatar

Join Date: Dec 2007
Location: Lugoff SC
Age: 31
Posts: 822

User is: lowlaynsten is offline
Send a message via Skype™ to lowlaynsten
Re: Sanden compressor FACTS and info.

i know on a sd7 the bolts bolt down and the sd5 bolts horizontal how do you make the 2.2 ac bracket accept bolts verticle? do you have a pic of ur bracket by anychance?
lowlaynsten is offline
post #45 of 85 Old 11-30-2008, 03:57 PM
Extended cab or no cab.

cpolaris502's Avatar

Join Date: Jul 2005
Location: Minnesota
Age: 30
Posts: 19,978

User is: cpolaris502 is offline
Re: Sanden compressor FACTS and info.

i have seen some brackets for a 2.2 that are shaped like an L.

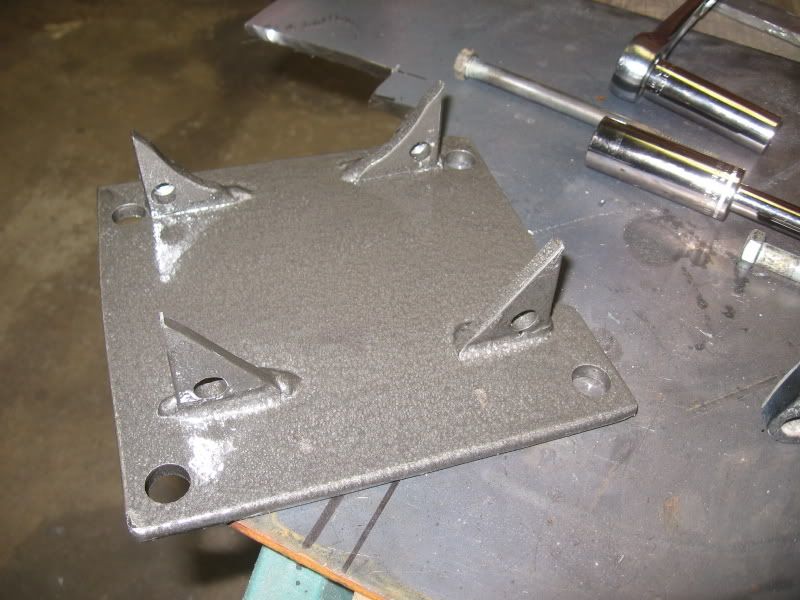

it would be like the opposite of the bracket that i made to mount a 508 on my 4.3. Just picture this flipped upside down with the ears bolting to your engine bracket.

Cory - TWISTED KONCEPTS
1999 2dr Blazer-Bagged and V8'd {Build Thread}
2005 Silverado 2wd 4/6'd. 402ci LSx/4L80e/turbo 800whp, 20psi boost---- Build Thread
1982 2wd Chevy C30 Crewcab Dually, 454/Manual
2001 Audi B5 S4

Last edited by cpolaris502; 11-30-2008 at 03:58 PM.
cpolaris502 is offline
post #46 of 85 Old 11-30-2008, 05:05 PM
Drag That Poopy

lowlaynsten's Avatar

Join Date: Dec 2007
Location: Lugoff SC
Age: 31
Posts: 822

User is: lowlaynsten is offline
Send a message via Skype™ to lowlaynsten
Re: Sanden compressor FACTS and info.

cool i should be able to make a bracket then im just worrried bout if there is a specific 709 i need to look for.
lowlaynsten is offline
post #47 of 85 Old 11-30-2008, 05:24 PM
Registered User

jeffery_843's Avatar

Join Date: Dec 2007
Location: goose creek,sc
Age: 34
Posts: 1,432

User is: jeffery_843 is offline
Re: Sanden compressor FACTS and info.

why not go with a 508?if your doing away with the a/c, ive read that you can make one of the holes in the factory bracket a little bigger and you will be able to bolt it up(something like that anyways). if you are wanting the sd7 then look for a 709.no specific one to look for, just as long is it has a 12v clutch and isn't off of some heavy equiptment or something that has a 24v system



edit: and look for one with a serpentine pulley

Last edited by jeffery_843; 11-30-2008 at 05:25 PM.
jeffery_843 is offline
post #48 of 85 Old 11-30-2008, 06:35 PM
Drag That Poopy

lowlaynsten's Avatar

Join Date: Dec 2007
Location: Lugoff SC
Age: 31
Posts: 822

User is: lowlaynsten is offline
Send a message via Skype™ to lowlaynsten
Re: Sanden compressor FACTS and info.

well from what ive heard sd7's are more common if i can find a 508 id probally grab one
lowlaynsten is offline
post #49 of 85 Old 11-30-2008, 06:41 PM
Registered User

jeffery_843's Avatar

Join Date: Dec 2007
Location: goose creek,sc
Age: 34
Posts: 1,432

User is: jeffery_843 is offline
Re: Sanden compressor FACTS and info.

look on older jeeps. you should be able to find one in a junkyard.
81-90 cherokee
86-90 comanchee
81-90 wagoneer
87-90 wrangler
jeffery_843 is offline
post #50 of 85 Old 11-30-2008, 06:55 PM
Drag That Poopy

lowlaynsten's Avatar

Join Date: Dec 2007
Location: Lugoff SC
Age: 31
Posts: 822

User is: lowlaynsten is offline
Send a message via Skype™ to lowlaynsten
Re: Sanden compressor FACTS and info.

kool thx bro
lowlaynsten is offline
Sponsored Links
Advertisement

Reply

Quick Reply
Message:
Options

Register Now



In order to be able to post messages on the S-10 Forum forums, you must first register.
Please enter your desired user name, your email address and other required details in the form below.

User Name:
Password
Please enter a password for your user account. Note that passwords are case-sensitive.

Password:


Confirm Password:
Email Address
Please enter a valid email address.


Email Address:
OR

Log-in










Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page



Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On


For the best viewing experience please update your browser to Google Chrome
