Talking c notch install?

Does anyone have a install guide or anything for installing jasons c notch into a first gen s10? I know its pretty basic but it always help to have a how to or something like that....phil
Old 02-06-2005, 03:21 PM   #2
No more switches

CustomS10's Avatar

Age: 31
Join Date: Jun 2003
Posts: 13,451
Location: Western Mass
User is: OffLine
Re: c notch install?

Quote: Originally Posted by likes it low
Does anyone have a install guide or anything for installing jasons c notch into a first gen s10? I know its pretty basic but it always help to have a how to or something like that....phil
i have a 2nd gen but it's all basically the same shit. I made a template out of cardboard and i measured the frame and the axle and made sure to get it center..then i put the template on the frame marked the frame and cut that bitch out. Drill the holes bolt it on and bam ur done.
Old 02-06-2005, 07:44 PM   #3
philly d from canada

likes it low's Avatar

Age: 34
Join Date: Feb 2004
Posts: 430
Location: bc canada
User is: OffLine
Re: c notch install?

what did you use to cut the frame? its a round notch hole so im thinking a orch is going to be the way..phil
Old 02-06-2005, 07:50 PM   #4
No more switches

CustomS10's Avatar

Age: 31
Join Date: Jun 2003
Posts: 13,451
Location: Western Mass
User is: OffLine
Re: c notch install?

Quote: Originally Posted by likes it low
what did you use to cut the frame? its a round notch hole so im thinking a orch is going to be the way..phil
i used a sawzall and a cut off wheel.
Old 02-06-2005, 11:47 PM   #5
2LO4BC

lowriderbowtie's Avatar

Age: 28
Join Date: Jan 2004
Posts: 2,859
Location: Kamloops, BC CANADA!
User is: OffLine
Re: c notch install?

use a cutoff wheel
you will be able to follow your lines better, then you can just clean up the edges with a grinder
Old 02-06-2005, 11:50 PM   #6
SOLD

MX_Racer32's Avatar

Age: 30
Join Date: Aug 2003
Posts: 7,551
Location: Charlotte
User is: OffLine
Re: c notch install?

if my gallery wasnt down you could chek out a bunch of pics that i have in there...
Old 02-07-2005, 12:10 AM   #7
Hates 'know-it-alls'

Age: 34
Join Date: Sep 2003
Posts: 26,065
Location: SOIL
User is: OffLine
Re: c notch install?

what kind of notch are you installing?
Old 02-07-2005, 12:34 AM   #8
Static Dropped Dime

BlizzardofOzz's Avatar

Age: 30
Join Date: Jan 2004
Posts: 1,326
Location: Fort Wayne, Indiana
User is: OffLine
Re: c notch install?

im gonna get that bolt in notch to for mine
Old 02-07-2005, 07:40 PM   #9
Honest Abe's Fab Shoppe

BlackEsDime's Avatar

Age: 29
Join Date: Mar 2004
Posts: 11,738
Location: Orlando, FL
User is: OffLine
Re: c notch install?

Quote: Originally Posted by grndscrpr03
what kind of notch are you installing?
Quote: Originally Posted by likes it low
Does anyone have a install guide or anything for installing jasons c notch into a first gen s10? I know its pretty basic but it always help to have a how to or something like that....phil
Old 02-07-2005, 07:56 PM   #10
****head

EvenFlow's Avatar

Age: 29
Join Date: Feb 2004
Posts: 3,850
Location: Staticville (East TN)
User is: OffLine
Re: c notch install?

Yup pretty easy. I've helped with 2 (one being mine). We marked the cut with a sharpie, grinded a lil notch to start it, and then used a sawzall for the majority of the cutting. Then cleaned it up with a grinder. Drill holes and bolt it in. We welded it as well for extra strength but it is definately not necessary. Jasons cnotch is badass. Pretty easy. I'll upload some pics to my .org gallery and post the links in a few.

*edit* .org is down, I will do it as soon as I can if you want some pics.

Last edited by EvenFlow; 02-07-2005 at 07:59 PM.
Old 02-08-2005, 08:36 PM   #11
****head

EvenFlow's Avatar

Age: 29
Join Date: Feb 2004
Posts: 3,850
Location: Staticville (East TN)
User is: OffLine
Re: c notch install?

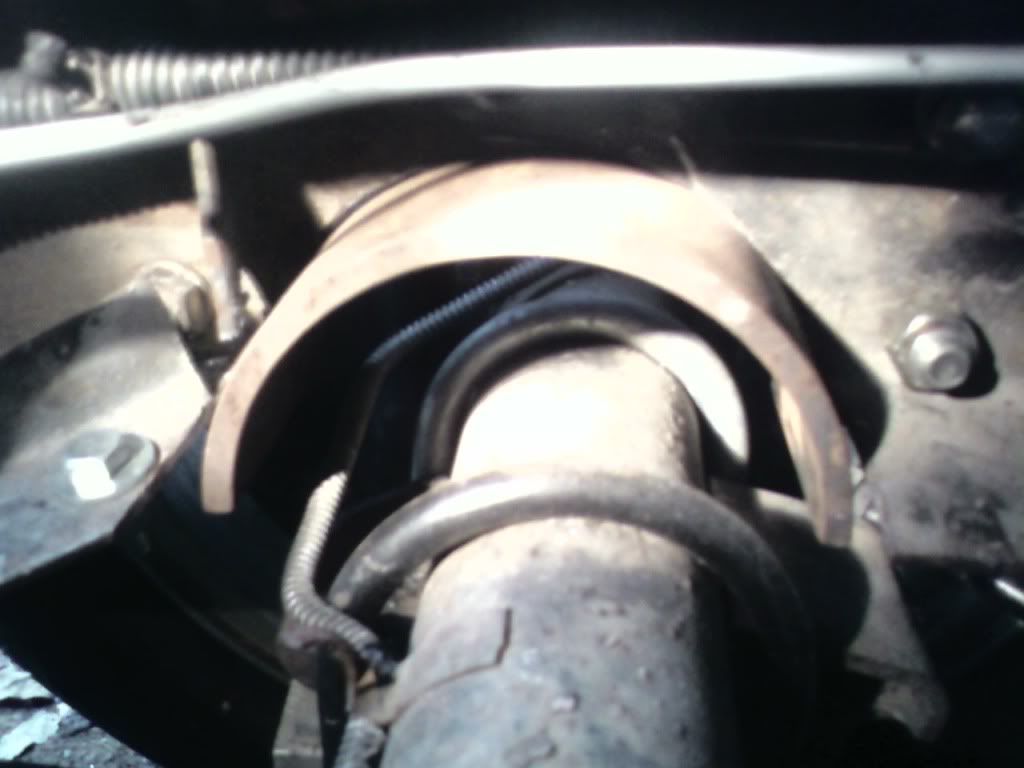

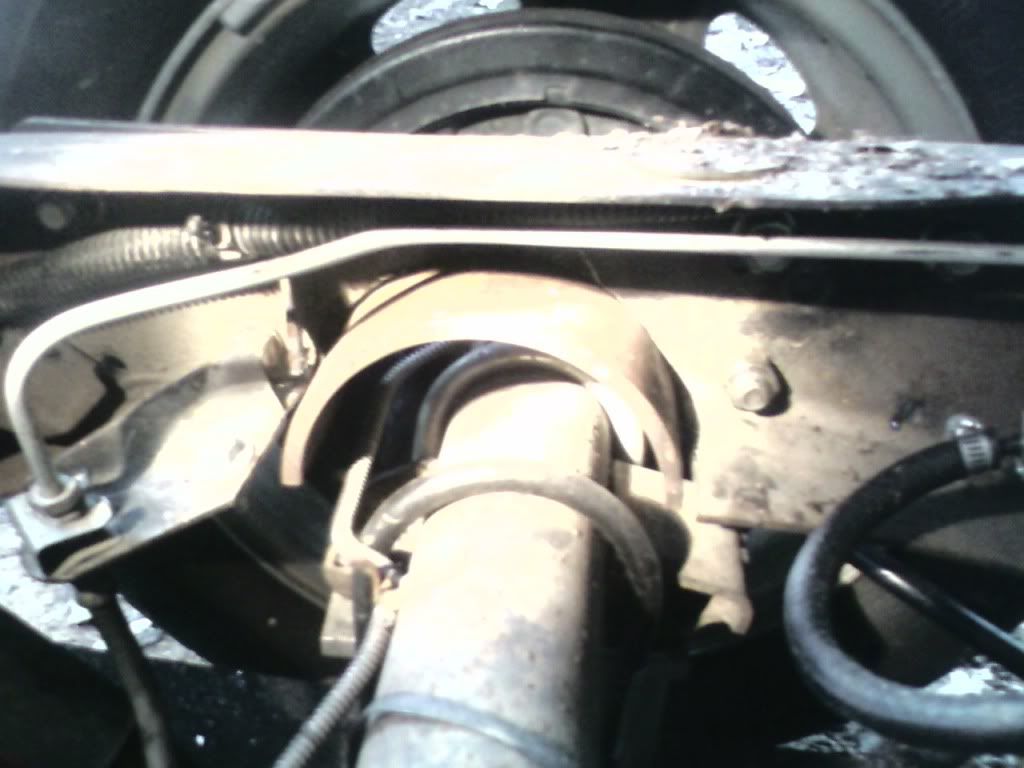

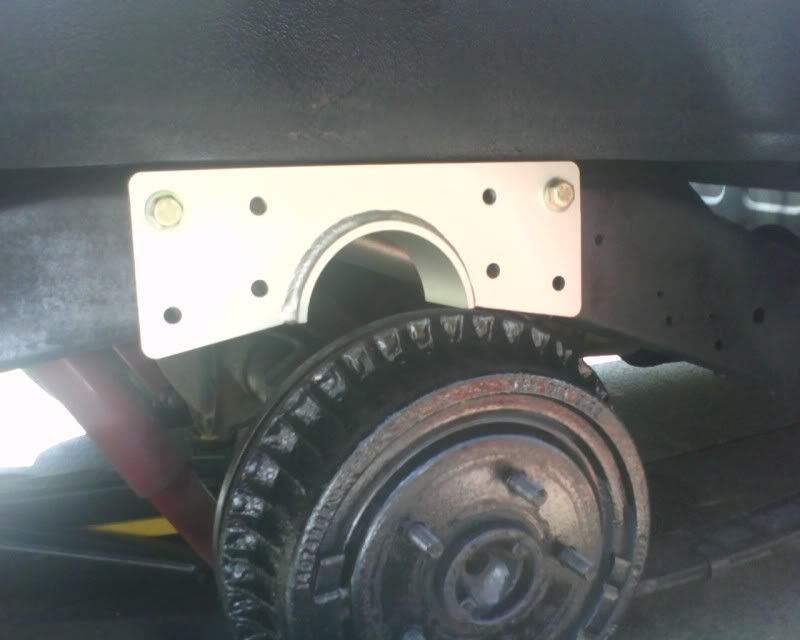

Here's a few pics, sorry about taking so long.

Here is the cut (pretty rough)


Notch bolted in


Closer pic


Hope this helps, should be relatively the same as 1st gen.
Old 02-08-2005, 09:19 PM   #12
No more switches

CustomS10's Avatar

Age: 31
Join Date: Jun 2003
Posts: 13,451
Location: Western Mass
User is: OffLine
Re: c notch install?

might be the pic but the notch looks a little far foreword from dead center..
Old 02-08-2005, 09:53 PM   #13
****head

EvenFlow's Avatar

Age: 29
Join Date: Feb 2004
Posts: 3,850
Location: Staticville (East TN)
User is: OffLine
Re: c notch install?

Its the angle I suppose. Once we got it back on the ground its dead center
Old 02-08-2005, 11:06 PM   #14
SOLD

MX_Racer32's Avatar

Age: 30
Join Date: Aug 2003
Posts: 7,551
Location: Charlotte
User is: OffLine
Re: c notch install?

mine looked like that too with the suspension with no load on it but when compressed its dead center. my pics are working since the galleries are up if you want to check them out.
Old 02-09-2005, 07:35 PM   #15
No more switches

CustomS10's Avatar

Age: 31
Join Date: Jun 2003
Posts: 13,451
Location: Western Mass
User is: OffLine
Re: c notch install?

Quote: Originally Posted by MX_Racer32
mine looked like that too with the suspension with no load on it but when compressed its dead center. my pics are working since the galleries are up if you want to check them out.
ahh that's right it's not under load. d'oh!

<--- captain obvious
Old 02-09-2005, 07:38 PM   #16
SOLD

MX_Racer32's Avatar

Age: 30
Join Date: Aug 2003
Posts: 7,551
Location: Charlotte
User is: OffLine
Re: c notch install?

its ok, i have plenty of brain farts myself when i overlook the obvious..lol
Old 12-27-2008, 12:16 AM   #17
Registered User

84blaze's Avatar

Age: 23
Join Date: Dec 2008
Posts: 1,468
Location: Victoria, BC
User is: OffLine
Re: c notch install?

did you guys jack the truck right off the ground and support both ends of the frame your cutting?

I'm about to do a 1st gen blazer with the suicide doors bolt in c notch, im just worried about the frame torquing and ending up with my frame bent and outta shape... Would it be better to drop my leafs so theres not strain what so ever on the frame rails??

never done this before thats why soo curious...
Old 07-17-2009, 04:31 PM   #18
Can't fly when your High

solow-noma's Avatar

Age: 32
Join Date: Mar 2006
Posts: 139
Location: Watsontown, PA
User is: OffLine
Re: c notch install?

EvenFLow, what kind of shock are you runnin there? are they better than Belltech nitrodrop 2's
Old 07-17-2009, 10:51 PM   #19
keepin it freshhh

Slowlowandbangin's Avatar

Join Date: Sep 2008
Posts: 6,472
Location: Cumberland, RI
User is: OffLine
Re: c notch install?

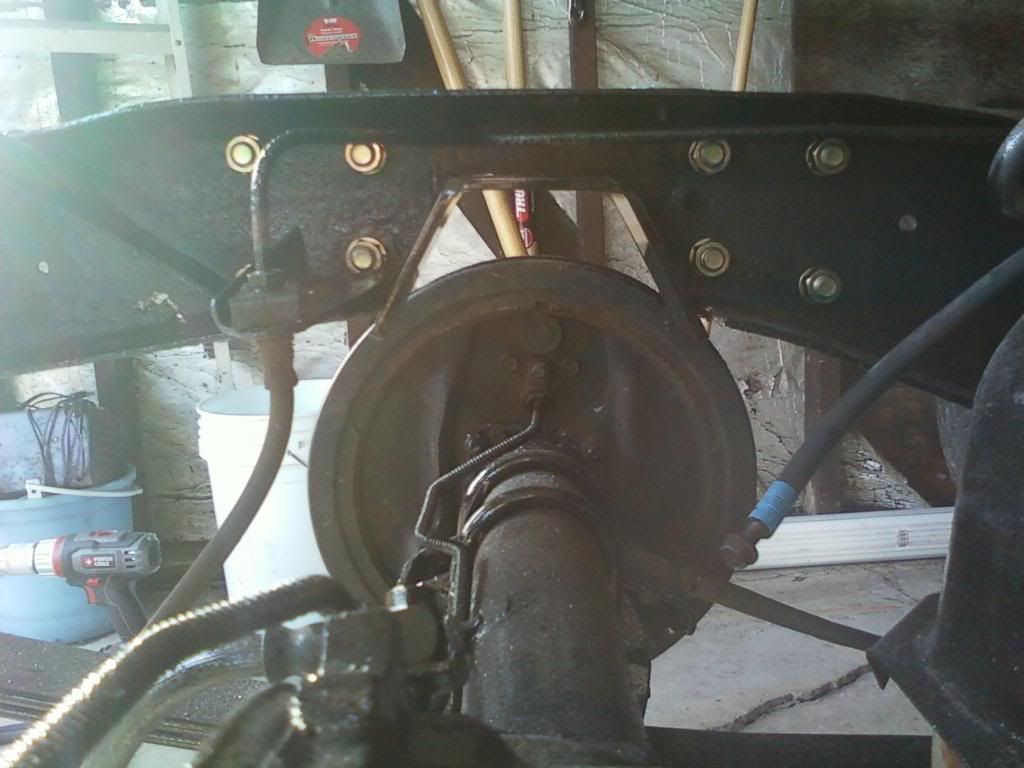

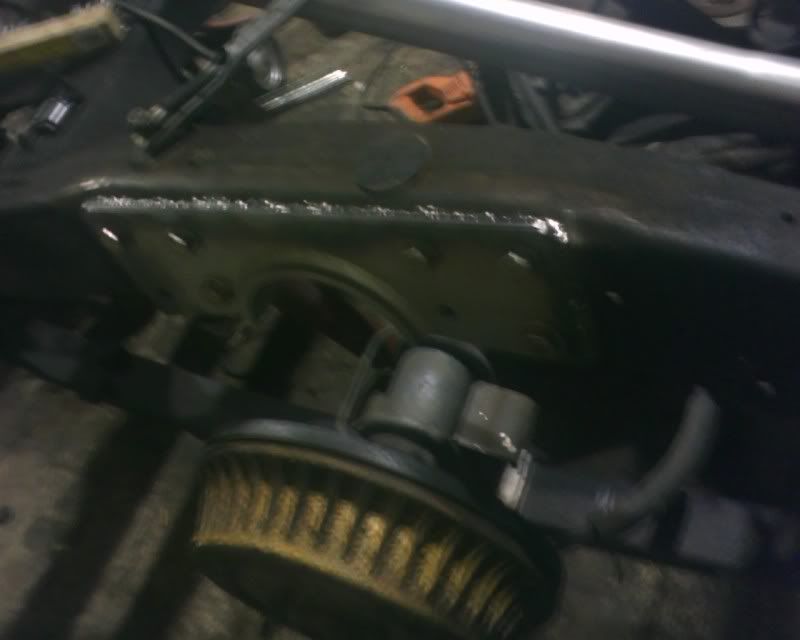

i have the suicidedoors bolt in c notches in mine, but i bolted them in and welded them in. i used a cut off wheel.

it came with a template to cut out, so i spray painted over the template, leaving white where i had to cut / drill.



then i did work.



my friend nate did the welds, his tip got messed up or they would have been a little cleaner.





really good notches for a static dropped truck. i never bottom out. so smooth.

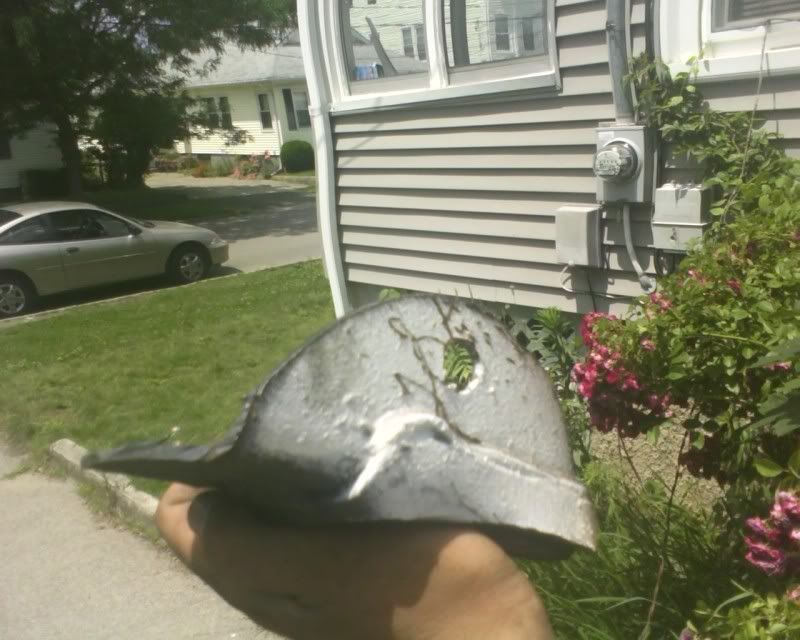

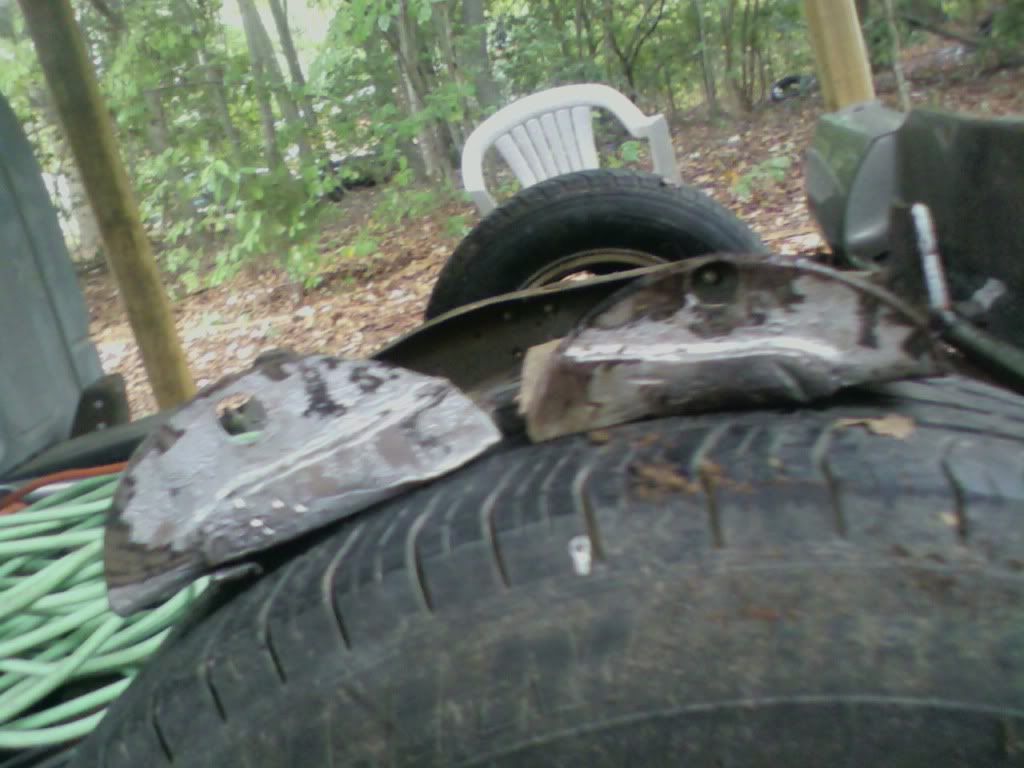

here's the piece i cut out

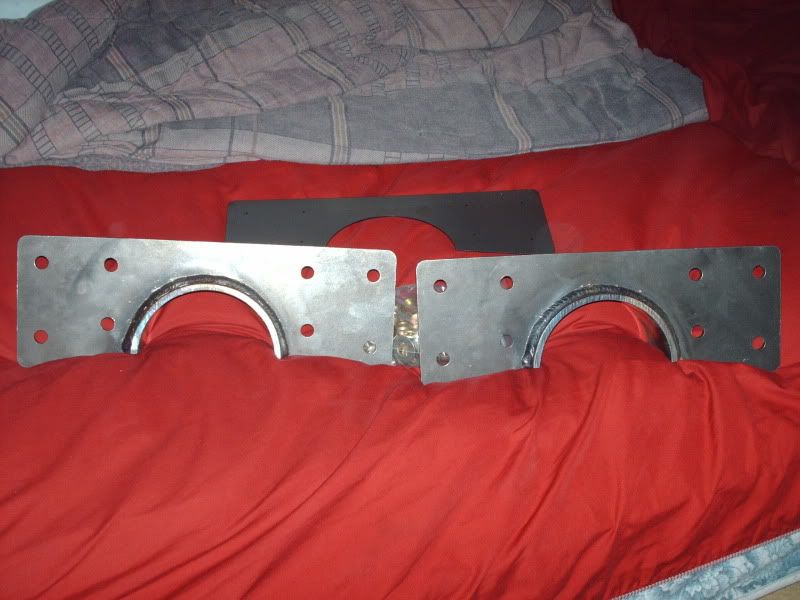

and here they are sitting on my bed b4 install

Old 07-19-2009, 01:22 PM   #20
Shazam!

BlazedLow's Avatar

Age: 29
Join Date: Apr 2009
Posts: 110
Location: Lake Jackson, TX
User is: OffLine
Re: c notch install?

Are yall boxing in the inside of the frame? Or just putting the notch on and going with it? Because I know the inside of my frame is open and when I put mine I am gonna Brace the inside as well.
Old 07-19-2009, 02:35 PM   #21
keepin it freshhh

Slowlowandbangin's Avatar

Join Date: Sep 2008
Posts: 6,472
Location: Cumberland, RI
User is: OffLine
Re: c notch install?

no boxing.



painted it this morning.
Old 07-19-2009, 02:36 PM   #22
keepin it freshhh

Slowlowandbangin's Avatar

Join Date: Sep 2008
Posts: 6,472
Location: Cumberland, RI
User is: OffLine
Re: c notch install?

even flow why did you grind down the frame and put the notch over it? i hope you painted the bare metal or something...
Old 07-20-2009, 04:50 PM   #23
Registered User

4point3's Avatar

Age: 25
Join Date: Mar 2008
Posts: 162
Location: Fort Wayne
User is: OffLine
Re: c notch install?

For the 2nd gen jimmy do I have to buy blazer c-notch, or I can use s-10 c-notch?
Thank you
Old 07-20-2009, 10:54 PM   #24
keepin it freshhh

Slowlowandbangin's Avatar

Join Date: Sep 2008
Posts: 6,472
Location: Cumberland, RI
User is: OffLine
Re: c notch install?

blazer
Old 07-21-2009, 10:07 PM   #25
yellow s10 dude

dustin_shull's Avatar

Age: 27
Join Date: Aug 2007
Posts: 198
Location:
User is: OffLine
Re: c notch install?

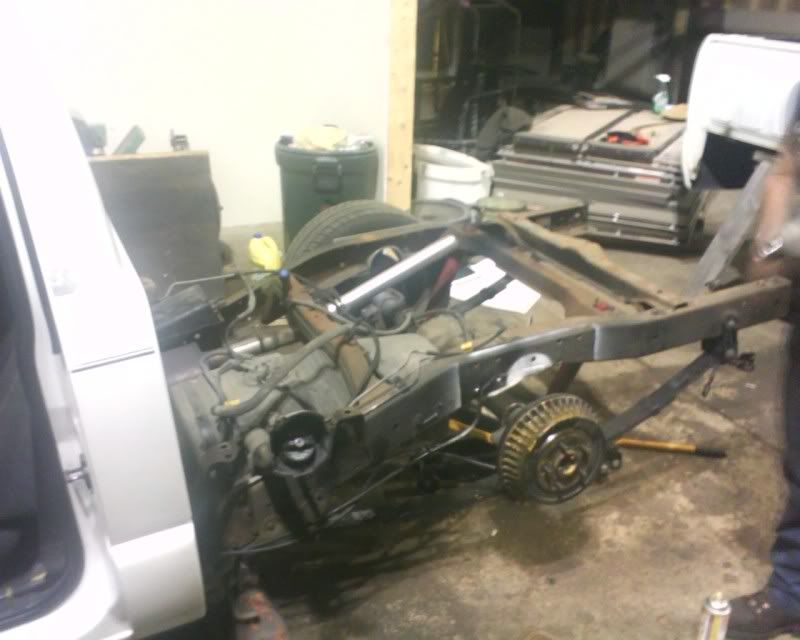

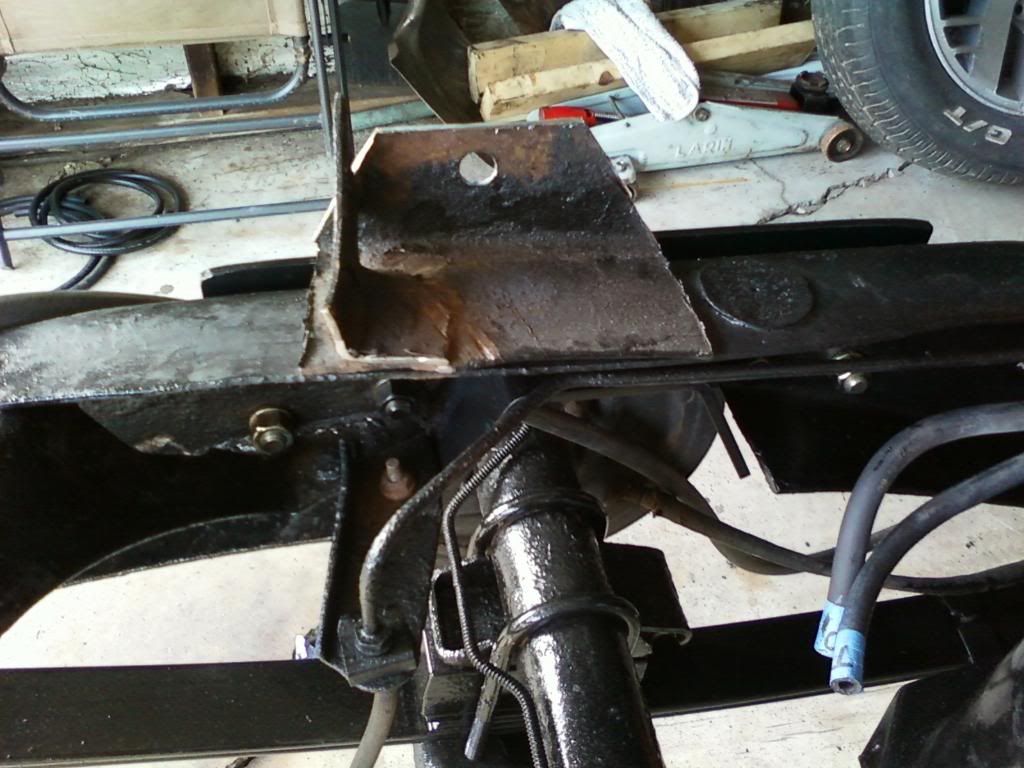

yup, gotta use a blazer offset notch. heres the one i did on my buddies blazer....

Old 07-21-2009, 10:10 PM   #26
yellow s10 dude

dustin_shull's Avatar

Age: 27
Join Date: Aug 2007
Posts: 198
Location:
User is: OffLine
Re: c notch install?

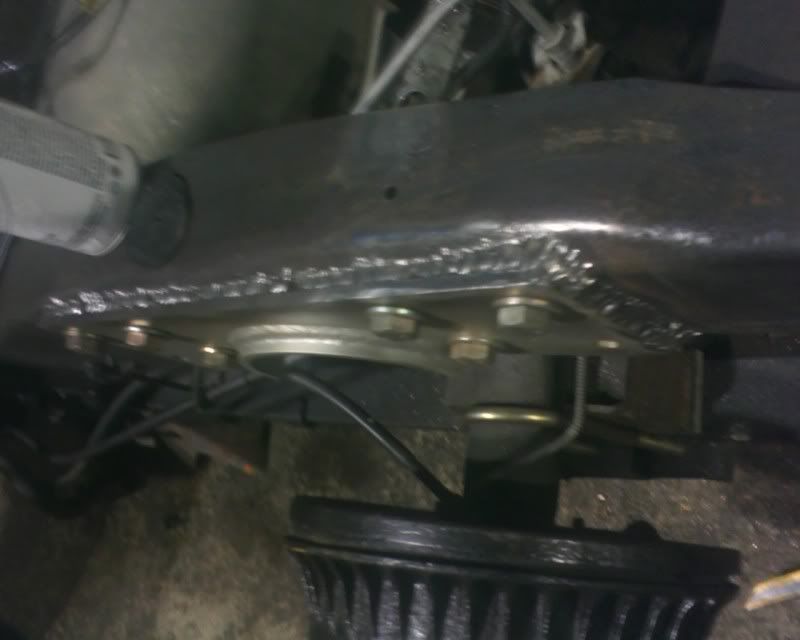

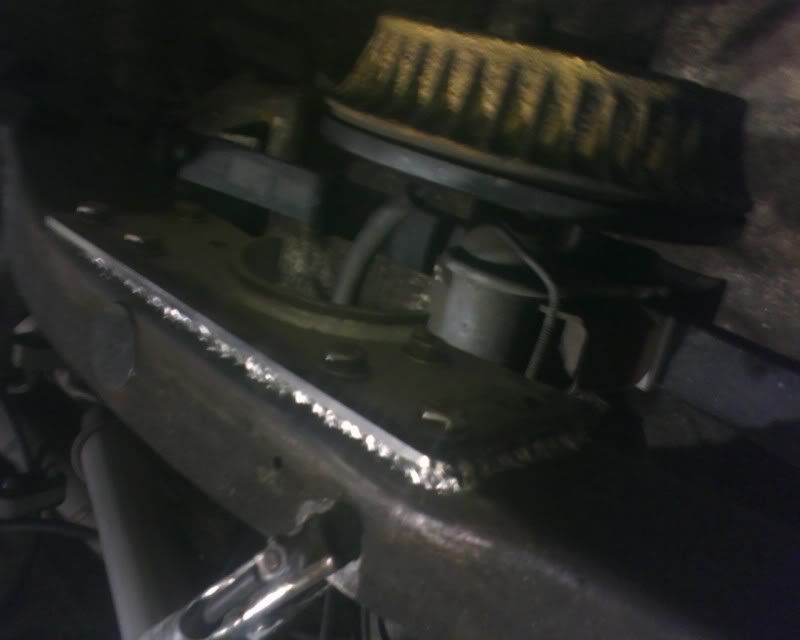

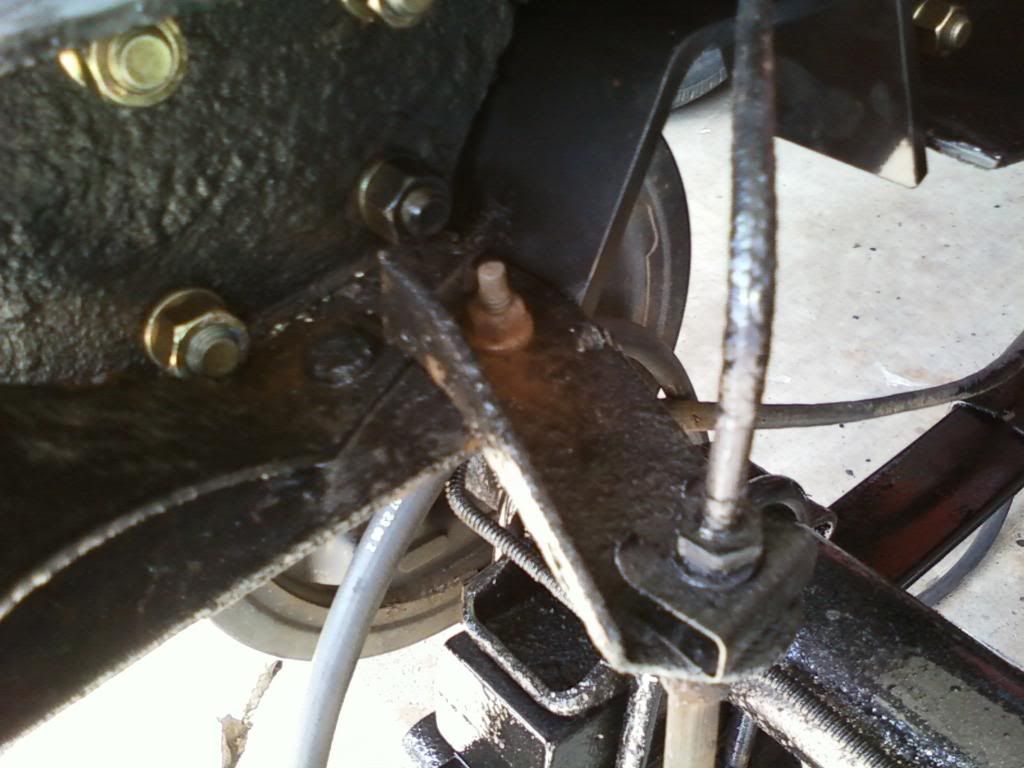

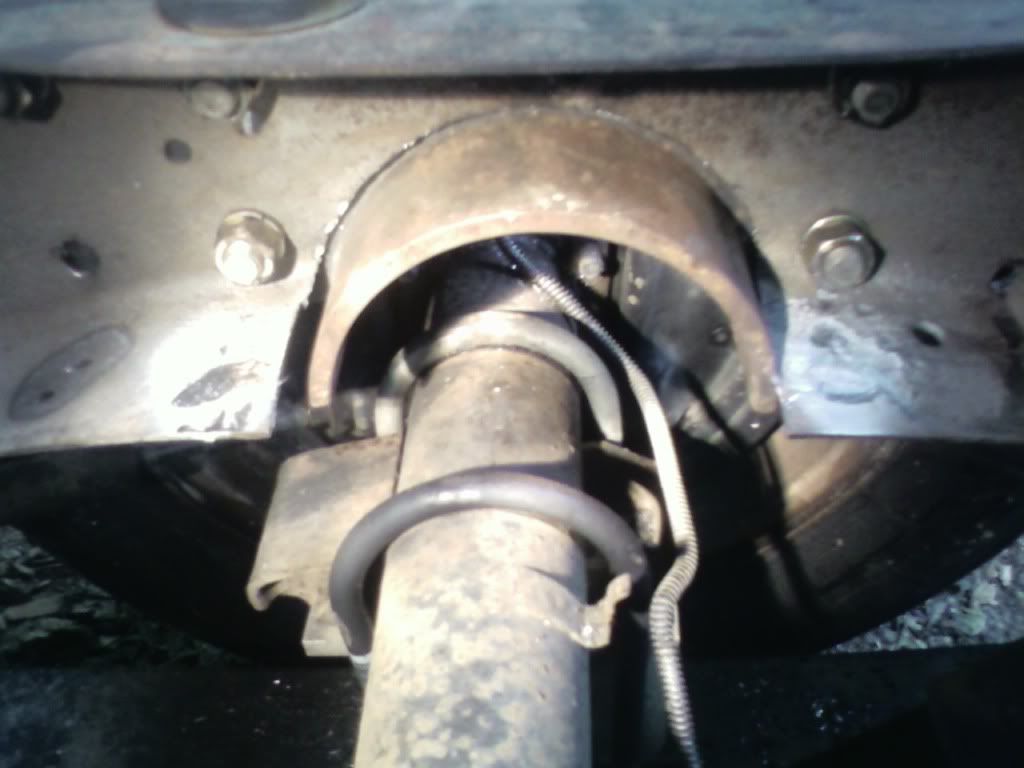

o...btw, here's sum pics of my notch and my gas tank crossmember notch....



Old 07-21-2009, 10:11 PM   #27
Registered User

BarelyGettinBy's Avatar

Age: 25
Join Date: Apr 2008
Posts: 1,679
Location: London Ky
User is: OffLine
Re: c notch install?

Thinking im gonna end up going this route since Im probably keepin my dime static for a while
Old 07-22-2009, 12:47 AM   #28
keepin it freshhh

Slowlowandbangin's Avatar

Join Date: Sep 2008
Posts: 6,472
Location: Cumberland, RI
User is: OffLine
Re: c notch install?

static is the way to go. forced to stay low. pussies with bags bring em up for speed bumps and driving. waste of money.

ride low 24/7 motha fuccccccccccc
Old 07-16-2010, 11:33 AM   #29
Registered User

Join Date: Sep 2009
Posts: 591
Location:
User is: OffLine
Re: c notch install?

i no this thread is kinda old but i didnt really wanna start a new thread bout it cuz it all seems to go together but i hav a 2000 sonomma and i have this black box thts mounted to the frame right were i need to notch and cut. i think it has to do with thefuel system? but i hav no idea what it is and i was planing on getting my notches soon but i gotta figure out what to do bout tht box
Old 07-16-2010, 11:51 AM   #30
Registered User

Join Date: Sep 2009
Posts: 591
Location:
User is: OffLine
Re: c notch install?

o and dose anybody hav a pic of the template with a few mesurements? i am throwing arouund the idea of making my own and thought it would be easyr if i had something to go off of lol
Old 07-16-2010, 03:56 PM   #31
Registered User

joster's Avatar

Age: 23
Join Date: Aug 2009
Posts: 104
Location: silverdale,WA
User is: OffLine
Re: c notch install?

how strong is the frame after doing the bolt in c notch? i was talkin to my dad and he was sayin by cutting into the fram at all will weakin it and the c notch is like a bandaid. is this true? i thought it would beef it up alittle
Old 07-16-2010, 05:30 PM   #32
.

mostizzle's Avatar

Join Date: Aug 2009
Posts: 27,759
Location: 1800 Crenshaw
User is: OffLine
Re: c notch install?

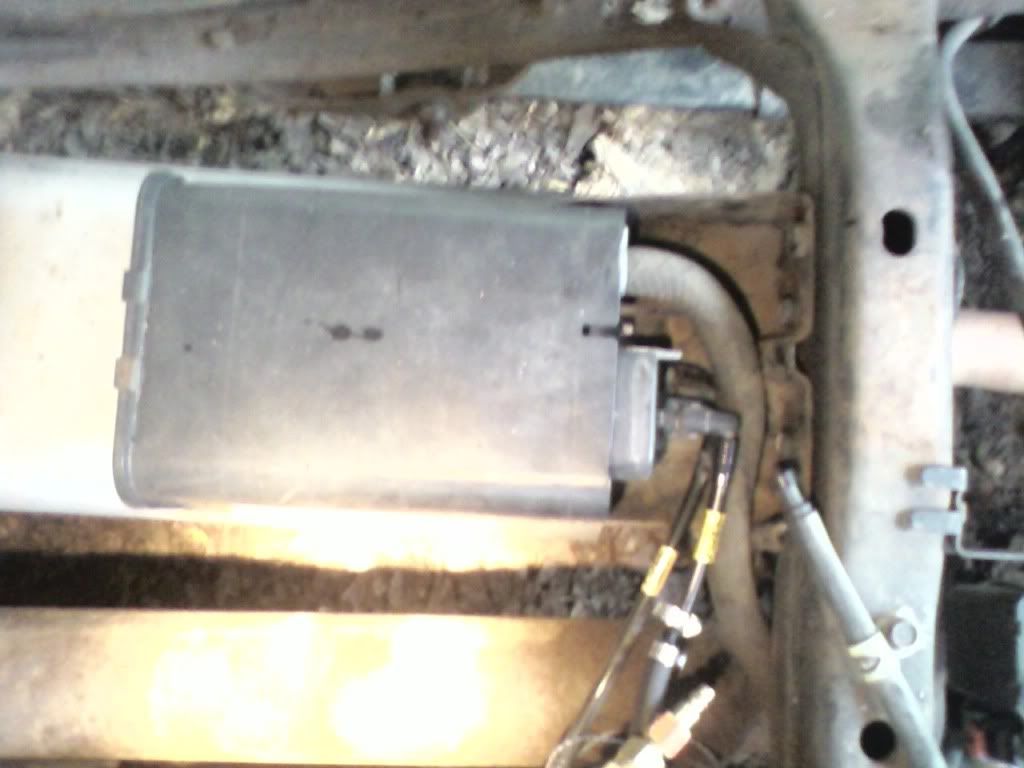

skindeep-that's the fuel evap canister and it has to be relocated when doing a notch. alot of guys just mount it on the gas tank xmember above the muffler by either welding the bracket right to the xmember or drilling holes and using self tapping bolts(you can see it in that location in dustin_shulls post). i mounted mine on the drivers side frame rail which will only work if you have a roll pan because it's mounted right where the bumper bracket would be. where ever you decide to put it you'll need to lengthen the rubber hoses which IIRC are 1/4'',5/16'' and 3/4''.



joster-i can see why your dad would think that but there's no way it compromises the strength of the frame IMO. if anything i'd say it's stronger in that area now.

Last edited by mostizzle; 07-16-2010 at 05:32 PM.
Old 07-16-2010, 06:41 PM   #33
Registered User

Join Date: Sep 2009
Posts: 591
Location:
User is: OffLine
Re: c notch install?

ok thanks mostizzle. and i hav a cali combo so tht wont be a prob lol i lik tht spot to btw




that answers one question lol any in put on the other one? lol



thanks yall
Old 07-17-2010, 12:06 AM   #34
.

mostizzle's Avatar

Join Date: Aug 2009
Posts: 27,759
Location: 1800 Crenshaw
User is: OffLine
Re: c notch install?

i do still have the template. i'll get a pic tomorrow if you want. what measurements do you want?
Old 07-17-2010, 01:00 AM   #35
Registered User

joster's Avatar

Age: 23
Join Date: Aug 2009
Posts: 104
Location: silverdale,WA
User is: OffLine
Re: c notch install?

Quote: Originally Posted by mostizzle
skindeep-that's the fuel evap canister and it has to be relocated when doing a notch. alot of guys just mount it on the gas tank xmember above the muffler by either welding the bracket right to the xmember or drilling holes and using self tapping bolts(you can see it in that location in dustin_shulls post). i mounted mine on the drivers side frame rail which will only work if you have a roll pan because it's mounted right where the bumper bracket would be. where ever you decide to put it you'll need to lengthen the rubber hoses which IIRC are 1/4'',5/16'' and 3/4''.


joster-i can see why your dad would think that but there's no way it compromises the strength of the frame IMO. if anything i'd say it's stronger in that area now.

see thats what i thought too. i was just gettin a second opionon on it. i was going to do it anyway haha. i have one more question. is it necesarry to notch the crossmember for the gas tank?
Old 07-17-2010, 12:43 PM   #36
Registered User

Join Date: Sep 2009
Posts: 591
Location:
User is: OffLine
Re: c notch install?

Quote: Originally Posted by mostizzle
i do still have the template. i'll get a pic tomorrow if you want. what measurements do you want?
overall size LxW and the diamiter of the arch. and the length of the curved piece

and the plate is 1/4 correct?

Last edited by skindeep; 07-17-2010 at 12:45 PM.
Old 07-17-2010, 07:28 PM   #37
.

mostizzle's Avatar

Join Date: Aug 2009
Posts: 27,759
Location: 1800 Crenshaw
User is: OffLine
Re: c notch install?

yeah it's a 1/4'' plate. personally if i was to make my own notch considering the bolt on notch is a universal deal and not necessarily made for s10's i would make my own template that better follows the s10's frame rail shape.
you can see in nitemares post how they're kind of a weird shape and they don't really follow the lines of the frame. then get a length(width of the frame or a little more) of 6'' 1/4'' wall tubing and cut it down the middle then use a half for each side.

the air is on and i'm too lazy to go out to the thousand degree garage to measure stuff lol
Old 07-18-2010, 12:04 AM   #38
Registered User

Join Date: Sep 2009
Posts: 591
Location:
User is: OffLine
Re: c notch install?

lol i no wht yu mean bro the heat and humity are out the ass lol


and i think i prob will make my own considering what you just said.
Old 07-18-2010, 02:09 PM   #39
Registered User

s10dollar's Avatar

Age: 25
Join Date: Oct 2008
Posts: 546
Location: Blue Springs
User is: OffLine
Re: c notch install?

I couldn't imagine living without my notches after getting them done this weekend I bought the s10 notches from suicide doors the line up really well had a problem with one bolt hole lining right up with bracket but still really worth it hardest part is getting the bed off !!
Old 09-15-2010, 02:05 PM   #40
Under Construcktion!

SlamThiz's Avatar

Age: 25
Join Date: Oct 2007
Posts: 372
Location: Seagrove,NC
User is: OffLine
Re: c notch install?

im getting ready to do my c notch install. but i got a question. i have relocated the charcoal canister. but on the drivers side there is a plate that holds a line that goes to the brakes or whatever. will i have to remove it or can i work around it?; and also it not be in the way for the c notch to get bolted in?
Old 09-15-2010, 03:45 PM   #41
Registered User

Age: 50
Join Date: Mar 2008
Posts: 2,045
Location: Decatur , Al.
User is: OffLine
Re: c notch install?

What about a '01 blazer ? I'm thinking about the bolt in one from SD. Can't remove the bed from the blazer. I'm on 4" blocks in the back.
Old 09-15-2010, 06:16 PM   #42
.

mostizzle's Avatar

Join Date: Aug 2009
Posts: 27,759
Location: 1800 Crenshaw
User is: OffLine
Re: c notch install?

Quote: Originally Posted by SlamThiz
im getting ready to do my c notch install. but i got a question. i have relocated the charcoal canister. but on the drivers side there is a plate that holds a line that goes to the brakes or whatever. will i have to remove it or can i work around it?; and also it not be in the way for the c notch to get bolted in?
i cut it flush with the frame rail and bent the line slightly so i could move it towards the back some, then i just drilled a hole through the rest of the bracket and the frame and put a bolt through it with a nut.


Old 09-15-2010, 08:32 PM   #43
Under Construcktion!

SlamThiz's Avatar

Age: 25
Join Date: Oct 2007
Posts: 372
Location: Seagrove,NC
User is: OffLine
Re: c notch install?

mmmmm so u did have to cut it all the way out =/ i was hoping for a no lol but i guess it will have to be done, also how did u bend the line? any special treatment?
Old 09-15-2010, 09:44 PM   #44
.

mostizzle's Avatar

Join Date: Aug 2009
Posts: 27,759
Location: 1800 Crenshaw
User is: OffLine
Re: c notch install?

i didn't have to take the brake line off or anything. the first pic shows the chunk of frame i cut out for the notch with the piece of the bracket that i got rid of.
i just use my hands to tweak it a little so it would sit where i needed it to be, drilled a hole a popped a bolt through it. it was no biggie.
Old 09-16-2010, 05:54 PM   #45
Under Construcktion!

SlamThiz's Avatar

Age: 25
Join Date: Oct 2007
Posts: 372
Location: Seagrove,NC
User is: OffLine
Re: c notch install?

thanks dude. ill let you know how it goes. should get to it sometime this week. saturday probly
Old 09-16-2010, 08:41 PM   #46
.

mostizzle's Avatar

Join Date: Aug 2009
Posts: 27,759
Location: 1800 Crenshaw
User is: OffLine
Re: c notch install?

no problem man, good luck with it.
Old 09-22-2010, 04:37 PM   #47
Under Construcktion!

SlamThiz's Avatar

Age: 25
Join Date: Oct 2007
Posts: 372
Location: Seagrove,NC
User is: OffLine
Re: c notch install?

so i did the notch and had no problems!! haha thanks for the help
Old 09-22-2010, 05:53 PM   #48
.

mostizzle's Avatar

Join Date: Aug 2009
Posts: 27,759
Location: 1800 Crenshaw
User is: OffLine
Re: c notch install?

congrats man, did you take any pics?
Old 09-26-2010, 01:32 PM   #49
Under Construcktion!

SlamThiz's Avatar

Age: 25
Join Date: Oct 2007
Posts: 372
Location: Seagrove,NC
User is: OffLine
Re: c notch install?

well no i did not, but idk if i should lol. it was my first hack haha. to me it looks good i was impressed but i dont want to get attacked cuz it was my first time with something as serious as the chassis, the way i see it is do it right or your SOL hahaha
Old 09-26-2010, 02:22 PM   #50
Under Construcktion!

SlamThiz's Avatar

Age: 25
Join Date: Oct 2007
Posts: 372
Location: Seagrove,NC
User is: OffLine
Re: c notch install?

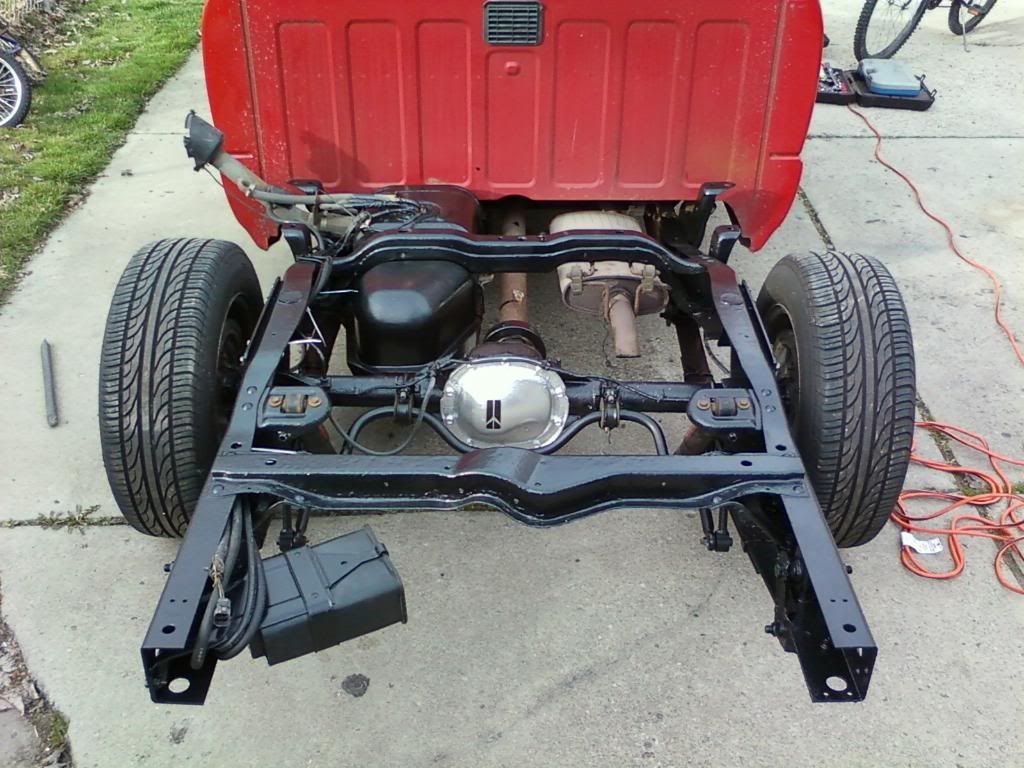

there.

[IMG][/IMG]











Bad eh?
Sponsored Links
Advertisement


Quick Reply
Message:
Options

Register Now

In order to be able to post messages on the S-10 Forum forums, you must first register.
Please enter your desired user name, your email address and other required details in the form below.
User Name:
If you do not want to register, fill this field only and the name will be used as user name for your post.
Password
Please enter a password for your user account. Note that passwords are case-sensitive.
Password:
Confirm Password:
Email Address
Please enter a valid email address.
Email Address:

Log-in

Human Verification

In order to verify that you are a human and not a spam bot, please enter the answer into the following box below based on the instructions contained in the graphic.



Thread Tools

Posting Rules
You may post new threads
You may post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On



All times are GMT -4. The time now is 09:33 AM.

Powered by vBulletin® Copyright ©2000 - 2011, Jelsoft Enterprises Ltd. SEO by vBSEO 3.2.0
SEO by vBSEO
vBulletin Copyright ©2000 - 2014, Jelsoft Enterprises Ltd.
