Electric Fan

Theres is a ton of differnt ways to install an electric fan. There is no perfect fan but there are many that work more than hard enough to keep the engine cool. The Taurus fan is very popular as well as a few aftermarket fans which through many failing one me I am now biased to one company. All the fans can be mounted in a few differnt ways and there is no wrong method as long as it holds the fan as close as possible the radiator. This is a very easy mod and can take a few minutes to a few hours depending on your mechanical skill but the result is worth whatever time you put into it.

To remove the clutch fan remove the shroud. Get either the porper tool from a auto parts store. They usually have a free loaner program to get the fan off. Or get a big ass wrench to fit the center nut on the fan and Unbolt it. Some times it takes a few whacks from a hammer on the wrench to pursuade the nut to come off. Now Install the fan with whatever method you would like. Once done for optimum cooling reinstall the shroud

To install the fan there are a variety of ways. You can get some angled steel make some brackets upper and lower and screw them to the upeer and lower radiator support,. and then bolt the fan to that. You can go the Nylon straps route through the radiator like I did. You can make a bracket that will just brace the fan at the bottom and hold it snug at the top with a spring load of the sort. There is no wrong way as long as its secure.

To wire just buy the 20 dollar kit. It has I think 6 wires. they are all color coded.

1. Main power for Relay
2. Main ground for Relay
3. A/C or sometimes called over ride switch wire that you tap into the A/C wire so when its on the fans on
4. Thermostat input wire, they all have some type of thermo switch
5. Thermostat Output wire, There should be 2 wires for the thermo one in and on out
6. Primary fan power +
7. Some have a secondary fan +

Real simple to wire up no big deal. Once you wire up the relay system. Install the fan run the Primary fan power wire from the relay to the fans + wire. Run the ground for the fan to the frame.

If its a set temp style system you donr. Turn on the A/C once the fan turns off to make sure you wired that correctly. If its adjustable you run the vehicle No A/c till the gauge on the dash is at the temp you want it to turn on then you adjust the thermostat switch the fan kicks on.

You will notice the engine is quieter, more responsive, little more tourque, and slightly better milage.


Last edited by GoofyGuy; 06-21-2004 at 11:46 PM.
GoofyGuy is offline
Sponsored Links
Advertisement

post #2 of 189 Old 03-13-2007, 12:53 PM
Forum Dictator

What?'s Avatar

Join Date: Jan 2004
Location: Hell
Posts: 20,411

User is: What? is offline
Re: Electric Fan

Picture Tutorial



Use 10mm socket, 3 bolts on top and 2 bolts on EACH side of the fan shroud

Now you have the top removed

Bottom is easy to take off, slide it off

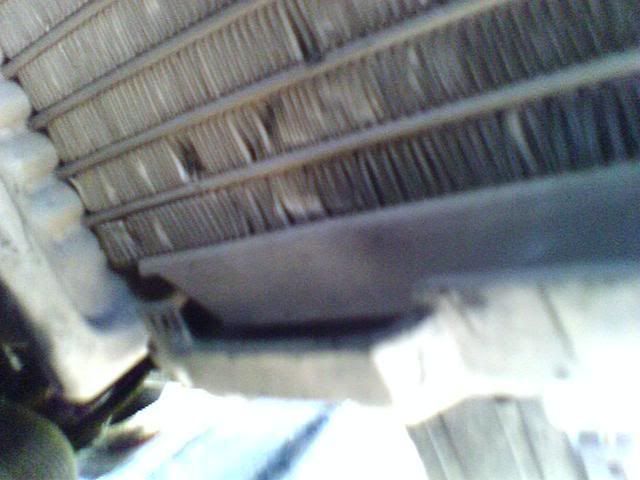

Dont forget the overflow hose thats attach to bottom shroud clip

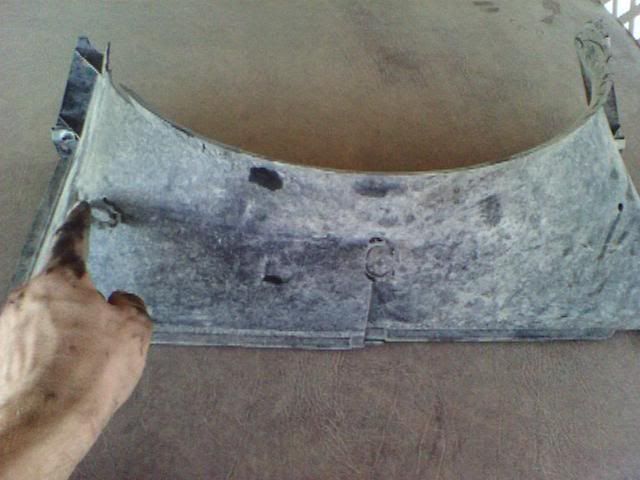

Bottom fan Shroud

R.I.P. Grant ('82-'02), BagNDragS10 ('80-'06), Loenuff ('66-'07), Terryl ('57-'09) Gearstix ('93-'10), Gimp ('84-'16)

If you have any problem, issue, thread/post change, request. Feel free to PM me.

Last edited by What?; 03-13-2007 at 06:07 PM.
What? is offline
post #3 of 189 Old 10-05-2007, 10:13 PM
Forum Dictator

What?'s Avatar

Join Date: Jan 2004
Location: Hell
Posts: 20,411

User is: What? is offline
Re: Electric Fan

Now with upper and bottom fan shroud remove
You need 3/8" rachet set on "Lefty Loosey"

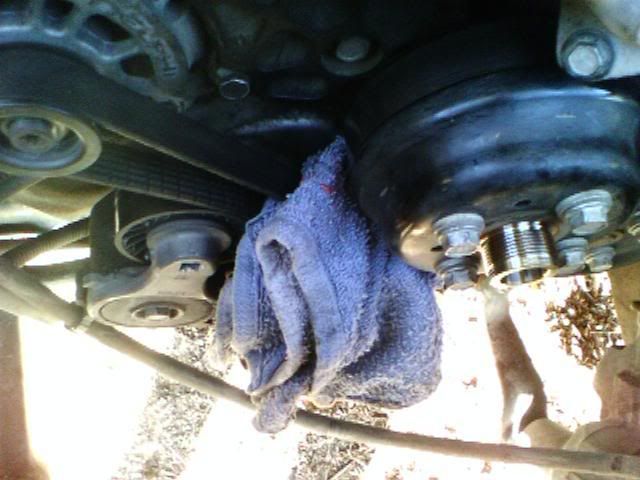

Pull it as far you can and stuff rough rag/towel in this location


Now let the belt tightens as u let the rachet back to orignal position to put pressure on rag on belt and pulley to make it harder for pulley to slip

As you see, i insert crescent wrench in there, now use a hammer or anything than you can hit end of wrench to loosen clutch fan, now after loosening it, it should look like this



Do procedure again to loosen the belt and remove the rag/towel

Voila, clutch fan is removed

R.I.P. Grant ('82-'02), BagNDragS10 ('80-'06), Loenuff ('66-'07), Terryl ('57-'09) Gearstix ('93-'10), Gimp ('84-'16)

If you have any problem, issue, thread/post change, request. Feel free to PM me.

Last edited by What?; 10-05-2007 at 10:19 PM.
What? is offline
post #4 of 189 Old 10-05-2007, 10:15 PM
Forum Dictator

What?'s Avatar

Join Date: Jan 2004
Location: Hell
Posts: 20,411

User is: What? is offline
Re: Electric Fan

Mounting the efan works however you want it, there are alot of ways to hold the efan with any kind of mount you come up with, mine is temporarily holding up by zip ties in where ac condensor used to be(mounting in front of radiator)

R.I.P. Grant ('82-'02), BagNDragS10 ('80-'06), Loenuff ('66-'07), Terryl ('57-'09) Gearstix ('93-'10), Gimp ('84-'16)

If you have any problem, issue, thread/post change, request. Feel free to PM me.
What? is offline
post #5 of 189 Old 11-17-2007, 06:41 PM
Forum Dictator

What?'s Avatar

Join Date: Jan 2004
Location: Hell
Posts: 20,411

User is: What? is offline
Re: Electric Fan

MORE E-fan Mods link!

http://www.fordmuscle.com/archives/2...cfan/index.php
http://www.s10forum.com/forum/f105/d...8/#post5287951
http://www.s-seriesforum.com/how-to-efan.html

http://www.s10forum.com/forum/f107/h...-review-59490/

Those who uses stereo system and wanting to do efan mod, follow this thread, it will help out your electrical system
http://www.s10forum.com/forum/f202/b...0/#post4590136

R.I.P. Grant ('82-'02), BagNDragS10 ('80-'06), Loenuff ('66-'07), Terryl ('57-'09) Gearstix ('93-'10), Gimp ('84-'16)

If you have any problem, issue, thread/post change, request. Feel free to PM me.

Last edited by What?; 09-29-2008 at 11:49 PM.
What? is offline
post #6 of 189 Old 04-21-2008, 05:14 AM
Forum Dictator

What?'s Avatar

Join Date: Jan 2004
Location: Hell
Posts: 20,411

User is: What? is offline
Re: Electric Fan

Those with efan installed

POST ONLY EFAN/WIRING KIT INSTALLED

Keep it pic only and state what efan is it, where you get it from, keep this very simple so can be used for variety of ways how its installed, kits, mounts, brands

R.I.P. Grant ('82-'02), BagNDragS10 ('80-'06), Loenuff ('66-'07), Terryl ('57-'09) Gearstix ('93-'10), Gimp ('84-'16)

If you have any problem, issue, thread/post change, request. Feel free to PM me.
What? is offline
post #7 of 189 Old 04-22-2008, 02:55 PM
don
Registered User

don's Avatar

Join Date: Jul 2001
Location: Glen Burnie MD
Age: 37
Posts: 861

User is: don is offline
Re: Electric Fan

just installed my zirgo e-fan and t-stat switch very easy install only about 1 1/2 hours working slowly brake every 15min ...lol...i hope the pic works of the wiring diagram i ran the power wire to the fuse block there where a few blank spots because i don't have power windows/lock/ac ext.

--------1995 CHEVY S10 REG CAB 2.2 5speed--------
--------2005 suzuki sv650s -------

Last edited by don; 04-22-2008 at 02:59 PM.
don is offline
post #8 of 189 Old 05-08-2008, 11:27 PM
Barack Obama for Prez

ricky96's Avatar

Join Date: Jun 2007
Age: 24
Posts: 65

User is: ricky96 is offline
Send a message via AIM to ricky96
Re: Electric Fan

i put contour fans in today its dark now soo ill get pics tomorrow one quick question though. i got a 180* stat what do i set my fans at

PM me if you have a 94-97 chrome grille for cheap!
ricky96 is offline
post #9 of 189 Old 06-13-2008, 03:15 AM
Registered User

Join Date: Jan 2008
Posts: 136

User is: daniel6718 is offline
Re: Electric Fan

most factory fans cut off at a certain speed, you guys doing similar at all? it looks by the wiring diagrams your leaving on one fan all the time and the other comes on when too hot or ac is on?
daniel6718 is offline
post #10 of 189 Old 06-15-2008, 02:09 AM
Registered User

Join Date: Jan 2008
Posts: 136

User is: daniel6718 is offline
Re: Electric Fan

anyway to make it turn off at speeds? im afraid ill be burning up this motor running 1 all the time! and with the ac on 99% of the time need something to cut off the ground for both relays at speed?
daniel6718 is offline
post #11 of 189 Old 07-15-2008, 09:06 PM
I'm Cooler Online

Silverado C/S-10's Avatar

Join Date: May 2008
Age: 35
Posts: 198

User is: Silverado C/S-10 is offline
Re: Electric Fan

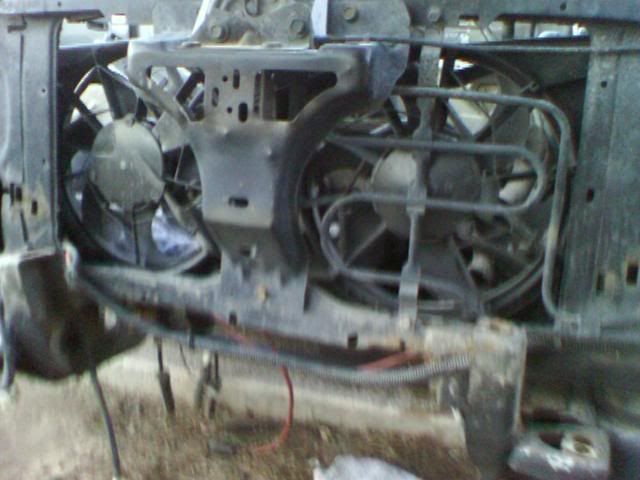

I did this modification this past weekend. I used a fan from a 90 3.8L Taurus. I only had to cut out a small rectangle from the lower S-10 shroud and trim the Taurus shroud. I also used a complete relay/adjustable temp kit. Total cost was about $90. $50 for the relay, $30 for the fan, $10 for wires/ends etc.

I only hooked up the low speed fan. It seems to be holding up well with the A/C on in traffic in the Carolina heat.

I've definitely picked up one, maybe 2 mpg.

1999 S-10~RCSB 2.2L/5spd/3.73
2000 Z71~ECSB 5.3L/4L60-E/3.73
1967 Pontiac Firebird - New Project
1967 Chevrolet C-10 RCSB Stepside~5.7L/700R4/3.73
-->Build Thread for '67 C-10: http://67-72chevytrucks.com/vboard/s...d.php?t=192693

Last edited by Silverado C/S-10; 07-15-2008 at 09:13 PM.
Silverado C/S-10 is offline
post #12 of 189 Old 07-26-2008, 04:27 AM
Loves The MPG

WNY99's Avatar

Join Date: Jun 2008
Location: Buffalo NY
Age: 32
Posts: 142

User is: WNY99 is offline
Re: Electric Fan

something i learned that helped me out a shit load was instead on useing a rag or towel to stop the pulleys i used a strap wrench. (my stock fan as a pain to break free) i found using the strap wrench i had more control and was safer. i'll be posting pic's as soon as i have some free time during daylight hours
WNY99 is offline
post #13 of 189 Old 08-10-2008, 11:03 PM
Happy with ugly truck

Buddha..'s Avatar

Join Date: Aug 2008
Location: Hugo, MN
Age: 31
Posts: 441

User is: Buddha.. is offline
Send a message via MSN to Buddha..
Re: Electric Fan


Cavalier E-fan, I shoulda went bigger. If I stay outta the traffic in the twin cites it's fine

Cut the shroud, put the top back on. Notched it to fit my fan

$2.99 meat thermometer FTW!

"If you wanna know something and he won't tell you, cut off one of his fingers. The little one. Then tell him his thumb's next. After that, he'll tell you if he wears ladies' underwear. I'm hungry. Let's get a taco."

If you need AC stuff shoot me a PM.
Buddha.. is offline
post #14 of 189 Old 08-11-2008, 08:57 AM
I'm Cooler Online

Silverado C/S-10's Avatar

Join Date: May 2008
Age: 35
Posts: 198

User is: Silverado C/S-10 is offline
Re: Electric Fan

^The reason that fan didn't work is because it's only pulling air through about 60% of the radiator. That's why the taurus fan modification is so popular, its shroud covers 95%+ of the radiator and fits well with little modification. Also, it might not be pulling very many cfm's.

1999 S-10~RCSB 2.2L/5spd/3.73
2000 Z71~ECSB 5.3L/4L60-E/3.73
1967 Pontiac Firebird - New Project
1967 Chevrolet C-10 RCSB Stepside~5.7L/700R4/3.73
-->Build Thread for '67 C-10: http://67-72chevytrucks.com/vboard/s...d.php?t=192693

Last edited by Silverado C/S-10; 08-11-2008 at 08:58 AM.
Silverado C/S-10 is offline
post #15 of 189 Old 08-11-2008, 12:21 PM
NOT AN S10

tg900's Avatar

Join Date: May 2006
Location: PA
Age: 28
Posts: 1,185

User is: tg900 is offline
Send a message via AIM to tg900
Re: Electric Fan

has anyone done a fan that blows air into the radiator? i saw a fan on a caddy at the junkyard that did that. are there any advantages/disadvantages to having a fan blow air through or have air suck in?

i know the a/c condenser is the farthest forward and it might not have a flat surface to sit on if the fan was blowing air into the engine bay. on the other hand, it would be a cleaner look, since nothing would be hanging in back of the radiator into the engine bay, so it would look like there is no fan.

Quote:
Originally Posted by hedgehog View Post
..... I know the truck better than my wife and have also found it to be more dependable than my wife.


ELTC NEPA

tg900 is offline
post #16 of 189 Old 08-11-2008, 02:24 PM
Happy with ugly truck

Buddha..'s Avatar

Join Date: Aug 2008
Location: Hugo, MN
Age: 31
Posts: 441

User is: Buddha.. is offline
Send a message via MSN to Buddha..
Re: Electric Fan

That'd be a pusher fan, as opposed to a puller. I'm thinking about doing it to have a cleaner look.
I've read people argue that a pusher is not as efficent.


Can someone answer this. Can you switch the wires to make a fan spin the other way? Is this hard on the fan or something? Thanks.

"If you wanna know something and he won't tell you, cut off one of his fingers. The little one. Then tell him his thumb's next. After that, he'll tell you if he wears ladies' underwear. I'm hungry. Let's get a taco."

If you need AC stuff shoot me a PM.
Buddha.. is offline
post #17 of 189 Old 08-11-2008, 09:52 PM
goin broke but n style

S15vortecpwr's Avatar

Join Date: Jan 2007
Location: Wetumpka, Alabama
Age: 36
Posts: 12,936

User is: S15vortecpwr is offline
Re: Electric Fan

you can swittch the wires to make it push, but it may not be efficent since most fan blades are curved

94 GMC Noma 4.3 CPI auto - under construction
01 Trans Am Ws6 - Garage Queen

12 RAM 1500 CC Hem, stock for now, 17.9 mpg on avg.

01 GMC Noma 2.2L auto - SOLD
99 blazer 4dr 2wd - SOLD

GOIN BROKE BUT N STYLE
S15vortecpwr is offline
post #18 of 189 Old 08-12-2008, 03:13 AM
Happy with ugly truck

Buddha..'s Avatar

Join Date: Aug 2008
Location: Hugo, MN
Age: 31
Posts: 441

User is: Buddha.. is offline
Send a message via MSN to Buddha..
Re: Electric Fan

Oh, I see. Shitty.

"If you wanna know something and he won't tell you, cut off one of his fingers. The little one. Then tell him his thumb's next. After that, he'll tell you if he wears ladies' underwear. I'm hungry. Let's get a taco."

If you need AC stuff shoot me a PM.
Buddha.. is offline
post #19 of 189 Old 08-13-2008, 09:57 AM
NOT AN S10

tg900's Avatar

Join Date: May 2006
Location: PA
Age: 28
Posts: 1,185

User is: tg900 is offline
Send a message via AIM to tg900
Re: Electric Fan

i saw at the junkyard, some cadillacs are pushers from factory. so since its a caddy, i'm assuming they curved the blades the right way.

Quote:
Originally Posted by hedgehog View Post
..... I know the truck better than my wife and have also found it to be more dependable than my wife.


ELTC NEPA

tg900 is offline
post #20 of 189 Old 08-14-2008, 03:54 PM
I hate thieves

Blue2.2-X's Avatar

Join Date: Apr 2005
Location: St. Louis
Age: 40
Posts: 532

User is: Blue2.2-X is offline
Re: Electric Fan

I've read to use the 97 Taurus fan from a 3.8L...only prob is 97 Taurus came with 3.0 or 3.4....would the 95 fan work?

2000 2.2L Xtreme xCab- Ground Force shocks, Volant CAI, 56mm TB, OBX header, ASP pulleys, Magnaflow cat, Dynomax ST, SS mirrors, lo pro tonneau, Xenon airdam, Alpine CDA9883, Infinity 4x6 Plates, MBQuart ONX216 components on a Hifonics Centurion X, Exile 600.1 on a PowerBass XL10D4 ported at 35hz (temp sub/amp setup while amps get repaired).


Quote:
Originally Posted by I want a Syclone View Post
wow.... idk bout you guys but terriyaki pineapple sounds like the taste equivilent of gods vagina.
Blue2.2-X is offline
post #21 of 189 Old 08-22-2008, 12:03 AM
shifting gears

Join Date: Jun 2008
Location: Charlottesville, VA
Posts: 255

User is: johnmyster is offline
Re: Electric Fan

FYI, it seems like a lot of people have issues getting the fan removed with the simple rag trick. I also tried jamming a screwdriver against the bolts, but mine wa really tight. I just busted my knuckles repeatedly.

Auto Zone has a rental tool ($20 deposit) 27018 - Called a Ford 4.9 Fan Clutch Wrench Set. 5 minutes later (including opening the hood) and one knuckle bust later and I had the fan removed. These wrenches are long. One grabs the shaft, the other jams between the nuts on the pulley. It was easily worth the bicycle trip to Auto Zone on the other side of town.

'98 Sonoma - 4 bangin, 5 speed, Extended Cab, ZQ8.

Project Fix It Up
johnmyster is offline
post #22 of 189 Old 08-22-2008, 10:01 AM
I'm Cooler Online

Silverado C/S-10's Avatar

Join Date: May 2008
Age: 35
Posts: 198

User is: Silverado C/S-10 is offline
Re: Electric Fan

Quote:
Originally Posted by johnmyster View Post
FYI, it seems like a lot of people have issues getting the fan removed with the simple rag trick. I also tried jamming a screwdriver against the bolts, but mine wa really tight. I just busted my knuckles repeatedly.

Auto Zone has a rental tool ($20 deposit) 27018 - Called a Ford 4.9 Fan Clutch Wrench Set. 5 minutes later (including opening the hood) and one knuckle bust later and I had the fan removed. These wrenches are long. One grabs the shaft, the other jams between the nuts on the pulley. It was easily worth the bicycle trip to Auto Zone on the other side of town.
I used the same tool, but my deposit was $60. They must be more trusting in your town!

1999 S-10~RCSB 2.2L/5spd/3.73
2000 Z71~ECSB 5.3L/4L60-E/3.73
1967 Pontiac Firebird - New Project
1967 Chevrolet C-10 RCSB Stepside~5.7L/700R4/3.73
-->Build Thread for '67 C-10: http://67-72chevytrucks.com/vboard/s...d.php?t=192693
Silverado C/S-10 is offline
post #23 of 189 Old 02-17-2009, 07:15 AM
The Wonky One

Helgaiden's Avatar

Join Date: Feb 2007
Location: Riverside, CA
Age: 29
Posts: 788

User is: Helgaiden is offline
Re: Electric Fan

ive got a system in my truck thats 1200 peak, 330 RMS. I plan on putting an upgraded pulley set on there. If i do that and an Efan mod, would i still need to upgrade the stock wiring? So far its given me no problems. Always at over 14 volts, even if the system is blasting super loud.
Helgaiden is offline
post #24 of 189 Old 02-17-2009, 09:52 PM
tu-tu guru

Chris0nllyn's Avatar

Join Date: Jan 2004
Location: Southern MD
Age: 28
Posts: 8,893

User is: Chris0nllyn is offline
Send a message via AIM to Chris0nllyn
Re: Electric Fan

no...you dont have too, but it wouldnt hurt...search "big three" on here and do that


Everything you need to know about the 2.2L- http://www.s10forum.com/forum/f105/2...-pains-321784/
Chris0nllyn is offline
post #25 of 189 Old 02-24-2009, 04:41 PM
Registered User

Join Date: Feb 2009
Posts: 74

User is: j_ehle is offline
Re: Electric Fan

what kinda belt do you get once you remove the fan clutch pully???
j_ehle is offline
post #26 of 189 Old 02-24-2009, 04:43 PM
This season SUCKS.

dngrous_dime's Avatar

Join Date: May 2003
Location: 49680
Age: 36
Posts: 15,929

User is: dngrous_dime is offline
Send a message via AIM to dngrous_dime Send a message via MSN to dngrous_dime Send a message via Yahoo to dngrous_dime
Re: Electric Fan

Quote:
Originally Posted by j_ehle View Post
what kinda belt do you get once you remove the fan clutch pully???
I've always understood that you don't remove the pulley, just the fan. The same belt will run there, but there's no drag from the fan.

Brian
Quote:
Originally Posted by 1fast4by View Post
Also, in case you were unaware Ass dynos never work
Quote:
Originally Posted by MotorNut123 View Post
yea i graduated. My whole family is proud. High school graduation is a huge thing. At least for my family it is.
dngrous_dime is offline
post #27 of 189 Old 02-24-2009, 04:49 PM
Don't look at my car

travy's Avatar

Join Date: Sep 2006
Location: Pennsylvania
Age: 29
Posts: 8,351

User is: travy is offline
Re: Electric Fan

Quote:
Originally Posted by j_ehle View Post
what kinda belt do you get once you remove the fan clutch pully???

You just take the fan blade assembly off. You don't take off the belt driven part.

I love snoboarding and blondes.
travy is offline
post #28 of 189 Old 02-25-2009, 09:46 AM
Registered User

Join Date: Feb 2009
Posts: 74

User is: j_ehle is offline
Re: Electric Fan

yea that logical thanks. you guys are great here
j_ehle is offline
post #29 of 189 Old 06-25-2009, 11:41 PM
the Token Freak

chvys10's Avatar

Join Date: Mar 2003
Location: Ft. Lauderdale, FL
Age: 40
Posts: 2,215

User is: chvys10 is offline
Re: Electric Fan

Quote:
Originally Posted by Buddha.. View Post

Cavalier E-fan, I shoulda went bigger. If I stay outta the traffic in the twin cites it's fine


N/m Im getting to do a set up like that, i got a fan out of a Camero

Last edited by chvys10; 06-25-2009 at 11:43 PM.
chvys10 is offline
post #30 of 189 Old 07-28-2009, 12:44 AM
Registered User

deso's Avatar

Join Date: May 2009
Location: Texas
Posts: 21

User is: deso is offline
Re: Electric Fan

I'm trying to get a definitive list put together of everything I will need to do this properly. Everything I've read so far has confused the hell out of me.

So for one speed I would need:
  • Fan
  • Inline fuse (size?)
  • Relay kit w/ temp sensor switch
The wiring is battery to inline fuse, fuse to relay, relay to temp switch and fan, temp switch to switched power source(where?) and fan/temp switch both grounded.

Is it best to tap into the A/C and have two speed? If so what else is needed and how would the wiring change (if it's correct)?
deso is offline
post #31 of 189 Old 09-01-2009, 09:47 AM
NOT AN S10

tg900's Avatar

Join Date: May 2006
Location: PA
Age: 28
Posts: 1,185

User is: tg900 is offline
Send a message via AIM to tg900
Re: Electric Fan

what if i can't get the bolt for the fan loose? it keeps spinning and a rag makes it spin more

Quote:
Originally Posted by hedgehog View Post
..... I know the truck better than my wife and have also found it to be more dependable than my wife.


ELTC NEPA

tg900 is offline
post #32 of 189 Old 09-01-2009, 10:02 AM
tu-tu guru

Chris0nllyn's Avatar

Join Date: Jan 2004
Location: Southern MD
Age: 28
Posts: 8,893

User is: Chris0nllyn is offline
Send a message via AIM to Chris0nllyn
Re: Electric Fan

get a fan wrench from auto zone or any other parts store....it helps


Everything you need to know about the 2.2L- http://www.s10forum.com/forum/f105/2...-pains-321784/
Chris0nllyn is offline
post #33 of 189 Old 09-01-2009, 03:53 PM
Forum Dictator

What?'s Avatar

Join Date: Jan 2004
Location: Hell
Posts: 20,411

User is: What? is offline
Re: Electric Fan

My rag isn't new and I stuffed it enough, although you can get a pry bar in between bolts(that goes onto clutch fan to pulley) in between then whack the hammer to loosen it up, do it carefully. That's my alternate way that works everytime.

R.I.P. Grant ('82-'02), BagNDragS10 ('80-'06), Loenuff ('66-'07), Terryl ('57-'09) Gearstix ('93-'10), Gimp ('84-'16)

If you have any problem, issue, thread/post change, request. Feel free to PM me.
What? is offline
post #34 of 189 Old 11-12-2009, 06:42 PM
Registered User

Join Date: Aug 2009
Posts: 215

User is: selfinfliction is offline
Re: Electric Fan

Quote:
Originally Posted by What? View Post
My rag isn't new and I stuffed it enough, although you can get a pry bar in between bolts(that goes onto clutch fan to pulley) in between then whack the hammer to loosen it up, do it carefully. That's my alternate way that works everytime.
yeah this is what it took to get mine off today.

also have to change the alternator and i would like to punch the guy in the face that put that damn bolt in backwards that is hard to get to on the side. think it'll be going back on with a nut on the back and bolt through the front
selfinfliction is offline
post #35 of 189 Old 01-26-2010, 12:24 PM
NOT AN S10

tg900's Avatar

Join Date: May 2006
Location: PA
Age: 28
Posts: 1,185

User is: tg900 is offline
Send a message via AIM to tg900
Re: Electric Fan

Taurus efan, it was from a 96 or so. It wasn't from the 3.8 as people said to find, i think it was a 3.0 but the dimensions were right. Fan controller is from autozone, had built in relay and hookup for a/c and is adjustable. Hooked up on only one speed, still draws a ton of amps, but eh.



Upgraded to a thicker radiator (1" thick core) at the same time, drilled holes in plastic of taurus shroud and bolted/zip tied to radiator



I used a 4.3 shroud since I got the wrong one from the yard, so i had to cut around for the filler cap. I also drilled holes (BE CAREFUL) in the shroud to hold the a/c lines



Did the same thing on the bottom side, drilled small holes to let the plastic nubs into the taurus shroud for the overflow tank connection. Careful once again, don't have pics ATM

Quote:
Originally Posted by hedgehog View Post
..... I know the truck better than my wife and have also found it to be more dependable than my wife.


ELTC NEPA


Last edited by tg900; 01-26-2010 at 12:27 PM.
tg900 is offline
post #36 of 189 Old 04-24-2010, 12:12 AM
Registered Users

Join Date: Apr 2010
Age: 31
Posts: 6

User is: 94 rust bucket is offline
Re: Electric Fan

can i take the fan out of a sho 3.4 would it pull the right amount of air
94 rust bucket is offline
post #37 of 189 Old 05-05-2010, 12:00 AM
Registered User

NoVadair's Avatar

Join Date: Mar 2010
Posts: 43

User is: NoVadair is offline
Re: Electric Fan

This mod has a newb all confused...could someone please explain what this mod does and how exactly this is to be done?

From what I understand you replace the old fan with a new one and somehow you get better performance? and how does this tie into the AC? the fan only runs when the AC is blowing?

thanks guys
NoVadair is offline
post #38 of 189 Old 05-05-2010, 12:30 AM
is a fungineer

ka_jd7and1's Avatar

Join Date: Jun 2005
Location: Bakersfield, CA
Age: 30
Posts: 6,109

User is: ka_jd7and1 is offline
Send a message via AIM to ka_jd7and1
Re: Electric Fan

Quote:
Originally Posted by NoVadair View Post
This mod has a newb all confused...could someone please explain what this mod does and how exactly this is to be done?

From what I understand you replace the old fan with a new one and somehow you get better performance? and how does this tie into the AC? the fan only runs when the AC is blowing?

thanks guys
What it does is remove your stock mechanical fan and install an electric one. Cleans up the engine bay (some extra room), and frees up a little power.

The easiest installation is putting the fan on a manual toggle switch inside the cab. The best way is to use a temperature sensor and relay so the fan comes on automatically when the engine reaches a set temperature.

Yes, the AC tie-in is that the fan will automatically override and turn on when the A/C is on regardless of engine temperature.



Vehicles may be subject to change......

2003 S10, 2.2 auto- the daily driver, currently with a 2"/2" drop and some minor engine bolt-ons BLOWN UP, looking for a motor (PM me)

1968 Chevy C10 longbed, currently undergoing a heart transplant- 3/5 drop, the new tow pig/cruiser/project
ka_jd7and1 is offline
post #39 of 189 Old 05-10-2010, 11:39 PM
Registered User

NoVadair's Avatar

Join Date: Mar 2010
Posts: 43

User is: NoVadair is offline
Re: Electric Fan

thanks for clearing that up, it is starting too make a little bit more sense.

what is the purpose in tying it into your ac? what if you decide not to run your ac? will things start to over heat
NoVadair is offline
post #40 of 189 Old 05-10-2010, 11:59 PM
Registered User

monkeytruckin's Avatar

Join Date: Jun 2009
Age: 34
Posts: 2,182

User is: monkeytruckin is offline
Re: Electric Fan

I tried to wire up my ac comp and when I went to try it out it would not let the comp kick on. I clipped the wire and the comp kicks on. Any ideas on where I went wrong? I am using a probe style hayden adj thermostat. Relay and a fan out of a 96 olds 3.1 v-6.

86 Blazer 4x4 2 Dr Tahoe... Clean DD...

'97 Blazer 4x4 4 door... parts are being gathered...
monkeytruckin is offline
post #41 of 189 Old 05-19-2010, 01:55 PM
NOT AN S10

tg900's Avatar

Join Date: May 2006
Location: PA
Age: 28
Posts: 1,185

User is: tg900 is offline
Send a message via AIM to tg900
Re: Electric Fan

Quote:
Originally Posted by NoVadair View Post
thanks for clearing that up, it is starting too make a little bit more sense.

what is the purpose in tying it into your ac? what if you decide not to run your ac? will things start to over heat
The thing tying it into your A/C is so when your a/c is on, your fan is on, regardless of engine temp. You don't want to run the a/c standing in place with no air moving across it...i hear you can burn/blow something...not sure why but just don't do it. That's why you make the fan turn on with the a/c on so you have air moving across the condenser at all times.

Quote:
Originally Posted by hedgehog View Post
..... I know the truck better than my wife and have also found it to be more dependable than my wife.


ELTC NEPA

tg900 is offline
post #42 of 189 Old 07-29-2010, 06:47 PM
Registered User

Join Date: Jul 2010
Location: Wichita, KS
Age: 30
Posts: 122

User is: mrbrace is offline
Re: Electric Fan

So, if I was to do this, using this kit.



Where would the gold thermometer go in the engine?

From what I am understanding, all I would need is the e-fan from a early taurus 3.8L, the wiring pictured, and remove my clutch fan...is that correct?
mrbrace is offline
post #43 of 189 Old 07-29-2010, 07:26 PM
Registered User

A CLEANMACHINE's Avatar

Join Date: Sep 2006
Location: ORLAND PARK ILLINOIS
Posts: 1,124

User is: A CLEANMACHINE is offline
Send a message via Yahoo to A CLEANMACHINE
Re: Electric Fan

Quote:
Originally Posted by mrbrace View Post
So, if I was to do this, using this kit.



Where would the gold thermometer go in the engine?

From what I am understanding, all I would need is the e-fan from a early taurus 3.8L, the wiring pictured, and remove my clutch fan...is that correct?
well it'd go where the temp sensor is currently so if you're thinking a tee fitting forget it ,been there done that it pulls temp sensor out of the coolant flow and will read 50 degrees cooler. i'd suggest the probe type from autozone and if you'er going to use a/c you need 2 relays.

99 ext cab auto, 7psi mitsu 14b turbo,ported and coated 2 1/2'' exhaust to turbo muffler,fake cat,underdrive pulley,efan,2.3 t/b,42lb racetronix inj,4.3 fuelpump,aem wideband,pyrometer,f/press guage,.lowered rear 2'',hhr seat , counsole,and finished fabbed cowl hood.
A CLEANMACHINE is offline
post #44 of 189 Old 07-29-2010, 07:47 PM
Registered User

Join Date: Jul 2010
Location: Wichita, KS
Age: 30
Posts: 122

User is: mrbrace is offline
Re: Electric Fan

Quote:
Originally Posted by A CLEANMACHINE View Post
well it'd go where the temp sensor is currently so if you're thinking a tee fitting forget it ,been there done that it pulls temp sensor out of the coolant flow and will read 50 degrees cooler. i'd suggest the probe type from autozone and if you'er going to use a/c you need 2 relays.
Ok, keeping that in mind, what would be the wiring diagram then? I will be using A/C for sure . So that setup would replace the stock temp sensor and I also need a probe temperature sensor? I guess i am looking for an exact breakdown of what all I need to buy and how to wire it. I can handle the labor portion of it.

I guess i am getting confused amidst all the threads on e-fans.
S10REX likes this.
mrbrace is offline
post #45 of 189 Old 08-19-2010, 05:39 AM
Registered User

Join Date: Jul 2008
Age: 24
Posts: 18

User is: BrettHarkness is offline
Re: Electric Fan

is this stud the 12v auxilary thats switched?
Attached Thumbnails
Click image for larger version

Name:	0819000226.jpg
Views:	888
Size:	40.0 KB
ID:	113066
BrettHarkness is offline
post #46 of 189 Old 08-19-2010, 10:51 AM
Registered User

Join Date: Sep 2007
Location: Southern California
Age: 60
Posts: 774

User is: nstoolman1 is offline
Re: Electric Fan

Quote:
Originally Posted by BrettHarkness View Post
is this stud the 12v auxilary thats switched?

That post is hot all the time.(12v) That is where I picked up the power feed for the fan. I put a 30 Amp fuse in there and it has worked fine. I keep a 50 in the truck for just in case. I run the low speed primarily but have run the high with no problems.
nstoolman1 is offline
post #47 of 189 Old 08-19-2010, 08:04 PM
Registered User

A CLEANMACHINE's Avatar

Join Date: Sep 2006
Location: ORLAND PARK ILLINOIS
Posts: 1,124

User is: A CLEANMACHINE is offline
Send a message via Yahoo to A CLEANMACHINE
Re: Electric Fan

you can use the wiper circuit feed on key sourced wire under wiper motor, just test which one.

99 ext cab auto, 7psi mitsu 14b turbo,ported and coated 2 1/2'' exhaust to turbo muffler,fake cat,underdrive pulley,efan,2.3 t/b,42lb racetronix inj,4.3 fuelpump,aem wideband,pyrometer,f/press guage,.lowered rear 2'',hhr seat , counsole,and finished fabbed cowl hood.
A CLEANMACHINE is offline
post #48 of 189 Old 08-20-2010, 12:10 AM
Registered User

Join Date: Sep 2007
Location: Southern California
Age: 60
Posts: 774

User is: nstoolman1 is offline
Re: Electric Fan

My truck is an 03 2.2 5 spd reg cab. I have the Taurus fan. Using only low speed. It has been in for about 2 years. After months of searching and 1 purchase I finally found a fan switch that would work for my truck. I installed a 180 stat and the truck runs, according to my temp gauge, around 185 on the open high way. The original fan switch
(Pic # 1) I had in the truck came on at 212 and off at 198. To hot for me when sitting at a light. I installed a manual switch (Pic # 2) to trigger the relay when I was sitting for long periods to prevent the engine from getting to hot. I don’t use it much now with the new switch installed. I found the fan switch I have now after going through countless catalogs and hard to find spec pages for switches.

The one I found is listed at OPEN at 97 c and CLOSES at 82 c. That converts to 197.6 F and 188.6 F. My temp gauge (Pic # 3) has a 100 then a long line (155) and a 210. The first line is 168.75. The middle is 182.5. The third is 196.25. The temp at cruise sits just above the 182 line. According to my dash gauge it comes on between the 196 mark and the 210. It goes off a little below the 196 line. The pictures I have enclosed show the way I have the switch mounted (Pic # 4) in the upper radiator hose. I took a copper fitting (Pic # 5) and tapped it out to a 21 x 1.5 thread.
Attached Thumbnails
Click image for larger version

Name:	(1) Old fan switch.jpg
Views:	1155
Size:	79.5 KB
ID:	113069   Click image for larger version

Name:	(2)Switch for relay.jpg
Views:	1414
Size:	34.5 KB
ID:	113070   Click image for larger version

Name:	(3)Temp Gauge.jpg
Views:	1179
Size:	39.4 KB
ID:	113071   Click image for larger version

Name:	(4)Fan Switch in-line.jpg
Views:	2009
Size:	86.1 KB
ID:	113072   Click image for larger version

Name:	(5) Copper fitting .jpg
Views:	1319
Size:	37.2 KB
ID:	113073


Last edited by nstoolman1; 08-20-2010 at 12:15 AM.
nstoolman1 is offline
post #49 of 189 Old 08-20-2010, 12:12 AM
Registered User

Join Date: Sep 2007
Location: Southern California
Age: 60
Posts: 774

User is: nstoolman1 is offline
Re: Electric Fan

Part 2
Then cut a hole in the pipe (Pic # 6) and brazed the copper fitting to the pipe and installed it. I personally did not like the idea of putting a sensor in the radiator or having the adjustable one. I figure a once install and forget was good enough. I am in the process of repairing the A/C so when that is done I will wire another relay in for the high side of the fan.

The part I found is an Airtex/Wells 1S4391(SW 552). I paid $10.27 S+H included. I ordered it from Rock Auto and it was shipped in 2 days. I looked again today and the price went up to and a delay. I may have got the only one in stock so be ready for the wait.
The price is right so be patient. Fortunately the old one had the same threads. When I got it I unscrewed the old and in with the new. Works great. Some other pics include my fuse box (Pic # 7) where I hooked my power (6 gage) for the fan to the spare fused post. As you can see I am running a 30-amp fuse. I also modified the feed (Pic # 8) from the 4 gage wire to a 2 gage 3/8 post. I partially pulled the radiator to feed the wire where the original went. Hope this helps some one who is thinking about a simple way to run their fans.

Attached Thumbnails
Click image for larger version

Name:	(6)Pipe and fitting.jpg
Views:	975
Size:	38.3 KB
ID:	113074   Click image for larger version

Name:	(7)Fuse and post.jpg
Views:	1049
Size:	91.6 KB
ID:	113075   Click image for larger version

Name:	(8)New feed pos.jpg
Views:	954
Size:	69.6 KB
ID:	113076
nstoolman1 is offline
post #50 of 189 Old 09-24-2010, 11:38 PM
Registered User

Join Date: Sep 2010
Posts: 31

User is: 99s102.2 is offline
Re: Electric Fan

Quote:
Originally Posted by don View Post
just installed my zirgo e-fan and t-stat switch very easy install only about 1 1/2 hours working slowly brake every 15min ...lol...i hope the pic works of the wiring diagram i ran the power wire to the fuse block there where a few blank spots because i don't have power windows/lock/ac ext.
do you have any problems with your fan cooling your engine? could you send me a list of the things needed to do it? and a list of how to do it? i want to do this so bad on my s10 because i want more mpg's and hp's. oh and does yours work fine with the ac?
99s102.2 is offline
Sponsored Links
Advertisement

Reply

Quick Reply
Message:
Options

Register Now



In order to be able to post messages on the S-10 Forum forums, you must first register.
Please enter your desired user name, your email address and other required details in the form below.

User Name:
Password
Please enter a password for your user account. Note that passwords are case-sensitive.

Password:


Confirm Password:
Email Address
Please enter a valid email address.


Email Address:
OR

Log-in









Human Verification

In order to verify that you are a human and not a spam bot, please enter the answer into the following box below based on the instructions contained in the graphic.



Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page



Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On


For the best viewing experience please update your browser to Google Chrome
